5.3 Two-Sided Defects and Bulky Things



5.3.1 Grain Boundaries

If I would follow the order put down in the beginning of this chapter, one-dimensional defects or dislocations would be next. I won't do that. I will skip the one-dimensional defects for the moment and go right to two-dimensional defects.
Besides the two-dimensional defect "surface" (which is a bit trivial) we need to look at
Grain boundaries go first. They are easy to conceive; we have a lot of them by definition if we look at a poly crystal. Whenever you look at crystals, chances are that you actually look at poly crystals and thus at grain boundaries - even if you can't see them because your brain microscope is off.
You don't see grains boundaries, even with you brain microscope on, whenever you look at single crystals. There aren't all that many of those around, however. What we have are:
  • Gemstones like your wife's diamonds and rubies.
  • Some special turbine blades inside jet engines.
  • Some very special optical components.
  • Major semiconductors like silicon (Si), gallium arsenide (GaAs) or gallium nitride (GaN) found inside electronic products like microchips or LED's.
The latter ones are the most perfect and ubiquitous ones. You must open up a chip if you want to see them. Go ahead, do it. It is fun, even so you kill the device by doing it. You finally revenge yourself on all those chirping and beeping gadgets that keep you from drinking beer. Also, it's less dangerous than fiddling around with your wife's diamonds. What you are going to see is shown (in its original state) in this link
You have seen many grain boundaries without noticing. Mostly because they are invisible to the naked eye, but also because you didn't know what you saw.
If you look at almost everything around you that is not glass or biology, you see poly crystals, which, by definition, contains plenty of grain boundaries. You just don't see them because the surface typically doesn't show the internal crystal structure. Even if it does, chances are that the grains are so small that without a microscope you can't see them.
Both points hold for your sword blade. First, it is probably polished, and that is just another way of saying that there is no visible structure on the surface. Second, the grains are so small that you couldn't see them anyway, not to mention the boundaries that separate them.
There are exceptions, however. When a puddle freezes over in the more northern countries you look at frozen water called ice. There you might see grain boundaries as the line separating different large grains.
Grain boundaries are definitely visible if you look at a lamp post or any other "galvanized" metal object, i.e. metals with a thin coating of zinc (Zn). The zinc grains can be very large and they are clearly visible, see below. The so-called "multi-crystalline" silicon used for solar cells has huge grains, too, and also shows the grain structure rather nicely as shown below.
Galvanized zinc
Visible poly crystals and grain boundaries
Galvanized sheet metal with clearly visible grains of the zinc (Zn) coating. Slice of multi-crystalline silicon (Si) used for making solar cells with visible grains of silicon.
Actually, what you really see are the grains. You see them because different grains of zinc (Zn), silicon (Si), or whatever, with different crystal orientation, reflect light differently. In between different grains there must be a grain boundary; look at our old picture again if you can't quite "see" it. So what does a grain boundary proper look like?
That's a rather difficult question. First we need to rephrase it a little: What is the atomic structure of a grain boundary? How do the atoms stick together if you cross from one grain to a another one? The answer leads into one of the more complex area of materials science with rather heavy math and still unclear parts; this link to an advanced module gives a little taste treat.
You don't quite see why this should be a difficult and complex part of Materials Science? Then you should have no problem with a very simple exercise
You don't want to know all that much about grain boundaries, you just want to see some? OK— in this link are some pictures.
All you need to know about grain boundaries right now is that they cause massive disturbances in a crystal. In other words, they introduce planes or "sheets" with rather high energy in the crystal. There cannot be proper nirvana if grain boundaries are present; the disorder they produce never balances the huge additional energy they carry with them. It is just as in the case of extrinsic impurity atoms: You got 'em, you pretty much keep 'em! So let's note down in big letters:

Grain boundaries like all defects except
for intrinsic point defects prevent
nirvana conditions.
They just have too much energy.

We call the energy coming with two-dimensional defects "grain boundary energy" or phase boundary energy, or surface energy. We always give it as a specific energy per cm2. The energy of two dimensional defects thus is their specific energy times the area they occupy. For the nirvana state this is bad. The crystal doesn't want either of them.
Too bad that it is very difficult for a poly crystal to get rid of its grain boundaries. Too bad for the crystal, but good for us as we shall see.
The crystal certainly tries to get rid of its grain boundaries by trying to make the grains larger and larger, until only one grain remains. Grains, however, will only grow at very high temperatures, and rarely enough to produce a single crystal. If you are not inclined to wait at high temperatures until hell freezes over, your poly crystal will still be a poly crystal, albeit with larger grains.
And all is well! For making good swords we need grain boundaries for various reasons. One is shown right below:

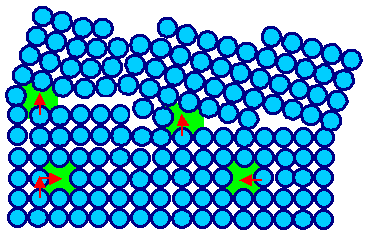

Grain boundary emitting vacancies Let the atoms jump as indicated and the two green "vacancies" hiding in the grain boundary move into the crystal.
Grain boundary emitting vacancies

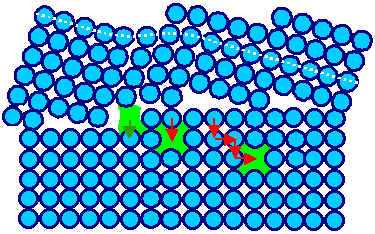

Grain boundary absorbing vacancies Let the atoms jump as indicated by the red arrows and the two green vacancies in the crystal move into the grain boundary. The green arrow indicates an atom after the jump
Grain boundary absorbing vacancies
First I want you to appreciate that it is impossible to draw a grain boundary "edge-on" in two dimensions without producing some "thinned-out" regions, with fewer atoms in a given volume compared to the perfect crystal.
Now we can "see" why grain boundaries are high energy defects. Atoms sitting in a grain boundary (or close by) just can't get as many partners as they want and where they want them. It takes a lot of work or energy to produce such an arrangement and that's why grain boundaries are high-energy defects.
What about their entropy or the amount of disorder they introduce into a crystal? Well—forget it. Obviously they do produce disorder but the balance of energy vs. disorder is always very lopsided. There is no way to compensate for the heavy increase in energy by gains in the TS product (remember?). For the crystal, grain boundaries are therefore just as unwelcome as extrinsic point defects.
From contemplating the figures, you may now have experienced a certain epiphany or enlightenment! Grain boundaries (and other "big" defects) are the places where those "missing" atoms go when you make vacancies!
Yes. That's correct. Now you know! It only remains to figure out where those missing single socks go but I will leave that task to you.
Next, I ask you to look at the figures above and imagine many vacancies going in (or coming out) of a grain boundary (there is a limit to my drawing skills). What happens to the grain boundary in this case? You then realize that the only thing that happens is that the grain boundary moves.
And now you also know why you need to heat your steel (or any crystal) to allow for grain growth or to "anneal" or "normalize" it. You simply need a lot of vacancies moving about to "heal" the crystal of all its other defects. Another "why" question has found an answer.
One more big thought. A question I asked before is how the crystal knows how many vacancies it needs to have for nirvana? The answer was: it doesn't, and so on.
Now we see a bit better what happens. Grain boundaries emit and absorb vacancies all the time in a completely random fashion. If on average they emit more vacancies per second than they absorb, the vacancy concentration in the crystal goes up; the other way around it goes down. What happens depends on the temperatures and maybe a few other things. But it just happens, no "thoughts" must be given to this business.
It's more or less like your bank account (or the state "bank account" called economy): it emits money at some average rate to you (or to all of us). This is simply the money you withdraw or that is taken out of your account by others like the IRS. Your account also absorbs money (whatever goes into your account). If the money concentration in your environment goes up or down depends on the difference between the two rates. The rates change if the economic climate or temperature changes; in crystal the rates change with temperature proper. And you don't really control all of this closely or think much about it. You just react to general conditions.
Now let's generalize a bit: Grain boundaries are something like garbage cans for all unwanted point defects. Self-interstitials and vacancies disappear at grain boundary without any direct traces; all that happens is that the boundary has moved a bit.
Extrinsic point defects or impurity atoms cannot disappear without a trace at a grain boundary; it's exactly like your garbage. It might be in the can—but it still exists. In normal life, you probably like your garbage better in the garbage can than all over the place; your wife most certainly does.
The crystal also likes to imprison his surplus impurity atoms in grain boundaries just the same. The disturbance they cause in the perfect crystal is simply larger than the disturbance they cause in the already disturbed grain boundary. However, grain boundaries are not very efficient garbage cans for impurity atoms. They are useful if there are only a few impurity atoms around but if there are many, the crystal needs to find better "prisons" for impurity atoms than grain boundaries.
If grain boundaries do manage to capture impurity atoms and hold on to them, new problems might come up. For example, if your grain boundaries have sucked up all the sulfur atoms that were roaming around in the grains, you now have clean grains and grain boundaries that consist of thin sheets of sulfur. Heat up such a steel, and when the sulfur melts at just about 113 oC (235 oF), your grains will fall apart. It's a bit more complex than that but that is essentially the mechanism that causes "red shortnes". We will get to this later in more detail.
Anyway, looking at grain boundaries, we learn a big truth. The crystal wants to get rid of those defects but can't quite make it, it thus can never ever reach the true nirvana state. So what is it going to do about that situation? Exactly what you and I would do:

If you can't achieve nirvana,
go for the second best option!

Lower the energy as much as you can. If you can't get rid of certain defects, mix and combine them in the best possible way. The pain of having too much energy then is relieved to some extent, in particular at low temperatures where the substantial disorder or entropy produced by all these defects hardly counts any more.
It only remains to ask: Why do we almost unavoidably get poly crystals with grain boundaries if that is not what the crystal likes? That's easy to see.
Whenever a solid crystal forms because a liquid freezes, this doesn't happen in one fell swoop but gradually, starting from tiny nuclei (Latin for seed or germ). That's so because the first step in going from being liquid to being solid, or if we generalize a bit, from one phase to another one, is always a very difficult thing to do.
Phase changes (that's what freezing is, remember?) almost always occur first at places where there is a little help to be had. For solidification or crystallization the wall of the container helps a lot. It's colder there than in the inside of the liquid (the inside is always hotter than the outside as you know if you ever ate a hot potato) and there might be convenient spots where an atom can get some rest (they are running around in the liquid state, remember?)
Nucleation, the forming of the first tiny crystals of the solid phase, then starts independently all over the place at "good" places or nucleation sites at the container walls.
Then the initially formed nuclei grow—the crystallized parts become larger—and eventually bump into each other. Since the crystal orientation usually is random, the crystal lattices do not fit wherever they finally meet and a grain boundary must form, see below.
Stat of crystallization Solidification in progress
Nuclei formed randomly and independently at some tiny irregularities on the container wall and grow into the remaining liquid. The color symbolizes different orientations of the crystals / grains.
End of crystallization Solidification is finished
The independently formed crystals with random orientation grew together, forming the grains of a poly crystal.
Steps in uncontrolled crystallization of a meltVery schematic and far too simple. I'll get back to this later.
While the schematic figures above give an idea of what happens, this picture shows reality:

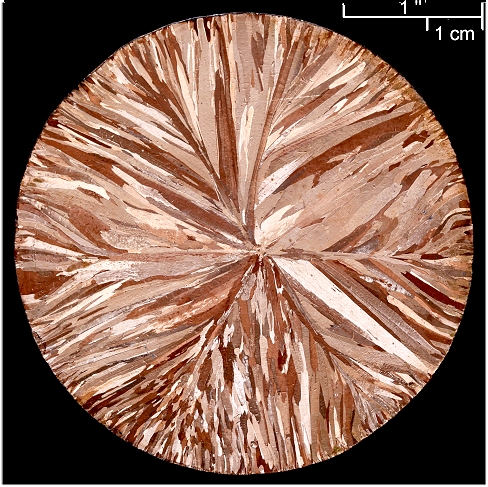

Grain structure after solidification
Grain structure in copper
Huge size
Source: Wikipedia / The Net at large
  Crystallization obviously proceeded from the outside to the inside. Whenever growing grains met, a grain boundary formed. Also something needed to happen because there was not enough place for all grains to continue growing. What happened is clearly visible: some grains stopped growing.
The figures and the picture are two-dimensional. Grain boundaries, however, enclose a complete three-dimensional grain. They thus must curve around in three dimensions—but that is difficult to draw, and not so easy to show in pictures either. It is not so difficult, however, to imagine the whole thing. Just think of the foam on your beer, for example, imagining that the thin membranes of the bubbles are rain boundaries, and you have an idea of what a three-dimensional grain boundary structure could look like.
Here I always draw grain boundaries "edge on". On rare occasions you also can see a real grain boundary exactly "edge on", indeed, in some thin slice of a material. Then you might be able to take a HRTEM picture.
The picture below shows the atomic structure of an actual grain boundary exactly edge-on in gold (Au), compare that to the figure above.
Grain boundary at atomic resolution
Grain boundary in Gold (Au) standing "edge-on" and imaged
at atomic resolution.
The insets show schematically the orientation of the cubic fcc elementary cell (not at the same scale as the picture).
The picture once more illustrates nicely that grain boundaries are good places to imprison impurity atoms in. There is just more room than between the atoms of a regular crystal.
Grain boundaries are also great places to nucleate something. They are a kind of internal "wall" with plenty of distortions. So making a bit more distortion by starting something new there—for example a precipitate—is not as difficult as inside the perfect crystal.
Nucleation is a key word not only for sword making but for making most everything from technical materials. It even governs your very existence. Did you ever wonder why you (or a piece of wood, a bucket full of oil, ... ) do not spontaneously self-combust? That would release a lot of energy and thus bring the collection of atoms that constitute you, a piece of wood, and so on, much closer to nirvana.
I will come back to this a lot; it's a cornerstone in all of Materials Science! Meanwhile you can ponder the question what kind of structure the collection of atoms that constitute you might assume for nirvana. You might even want to jump ahead to the science module about nucleation.
Finally, let's take a quick look at why grain boundaries matter directly in sword making. A grain boundary, as the word implies, separates different grains of the same material. The grains are three-dimensional objects with a certain size.
If the grains are enormous, (several millimeter (mm)) you can see them by just looking (as in the pictures above). If they are just large like several ten micrometers (µm), you can't see them with your unaided eye but easily with a standard optical microscope or some fancier microscope as in the pictures below. If they are small and "nano" (far below 1 µm) you need an electron microscope.

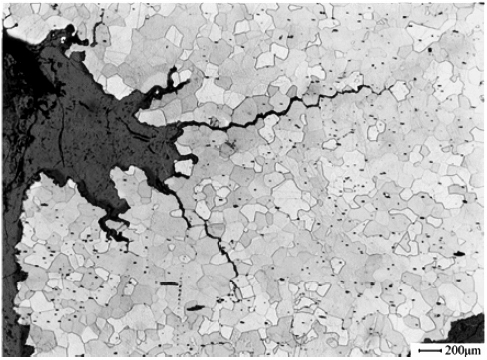

Grains in old sword

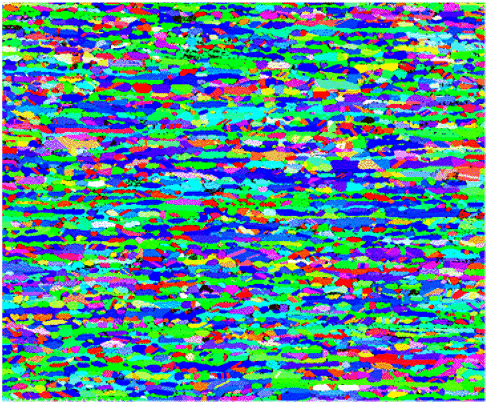

Grains in modern steel
Grain structures in steel made visible by optical microscopy
Source:
Top: Anne Feuerbach
Bottom: BAM; Germany; with permission
  The top pictures shows the grain structure in a 5th - 6th century AD double-edged sword from Kislovodsk. Black corrosion proceeds from the upper left, with cracks running down grain boundaries. This blade was made from rather soft wrought iron. The black dots are slag inclusion
The bottom picture shows the grain grain structure in hot-rolled modern steel. Fancy optical or electron microscopy provides for color. Grains with the same orientation have the same color. Note the elongation of the grains by the rolling process.
Let's note right now that grain size matters a lot for sword blades! If you somehow succeed to reduce the average grain size by a factor of 100 (from 50 µm to 0,5 µm, say), your blade will be about ten times harder (yes, there is a square root law in this). The obvious "why" question going with this statement I will tackle later.

The message is clear:
We want small grains in sword blades!

When you first crystallize a material from the liquid state, you almost always end up with a poly crystal that has some average grain size. This may or may or may not be the grain size that you would like it to have. In either case you must now do battle with the crystal:

You want the grains to be   small. The crystal,
for the usual nirvana reason, likes to have

its grains as large as possible.

A crystal is a tough opponent. It is not easy to make grains very small (say below micrometer) and quite often you find grain sizes in the 10 micrometer range. For millennia we had to live with this (without knowing, of course). There was just no way to make grains much smaller by trial-and-error.
The situation has changed. The present "nano" madness in science and engineering is also a bit about finding more an more ways to outsmart crystals and to make tiny "nano" grains. Not by trial-and-error but by understanding and calculation before acting.
If we want to change the grain size in a given material, the grain boundary need to move. That is a simple but far-reaching truth. If some grains gets larger, its grain boundary must move outwards, and other smaller grains must get "eaten up" in the process. If you want to make the grains smaller, same thing in reverse.
The obvious question coming up now is: how can a grain boundary move? Well, we have already dealt with some aspects of the answer right above.
A bit more generally the answer, like ever so often, is:

Grain boundaries generally move by
atoms jumping around or,
as we now call it, by diffusion of atoms.


Here is the magic word once more. Friendly vacancies need to come by, helping atoms on one side to move to a new position that now belongs to the other side.
Vaguely recalling the relevant numbers, we realize that appreciable movement of grain boundaries and thus grain growth will only happen at rather high temperatures.
For the usually "achieve nirvana" reasons, the grains will invariably get larger (and thus fewer) at high temperatures. There is no way you can make them smaller by just heating and waiting.
For making grains smaller we need some other tricks, involving "dirt". I will give you more about that later.
