10.5.3 Making Steel after 1870
|A Few General Words
|The year 1870 is as good as any in the second half of the 19th century to mark
the turning point in steel production or simply a major revolution
. And if I use the word "steel revolution" I include wrought iron and
cast iron because if you revolutionize steel production you must start with cast iron and wrought iron.
The revolutionizers of steel in the second half of the 19th century were more concerned about the quantity of iron and steel produced and not so much about the quality of the product. The industrial revolution taking place right then called for unprecedented quantities of iron and steel. Just consider how much of the stuff you needed in addition to everything else when you set out to establish a railway system! "Railway", by the way, translates to the German "Eisenbahn" (=iron path) or the French "chemin de fer" (=iron road) for good reasons.
There was no problem with increasing the production of pig iron. Blast furnaces could be made bigger and bigger and easily produced tens or even hundred of tons of pig iron per furnace and day. The costs actually decreased because you had substantial economy of scale effects. The big problem came with the fining needed. The available processes for making wrought iron by "fining" or steel by puddling, cementation, crucible, whatever, produced a few hundred kilograms or at most 0.7 tons per unit and day. If you wanted to increase production you needed more furnaces; you couldn't make them bigger. There was thus no economy of size and that means no cost digression. Right now we have a similar situation with respect to refining raw silicon needed in exponentially increasing quantities for solar cells.
Bessemer consequently stressed that he could manufacture malleable iron and steel without fuel, i.e. he emphasized a cost issue and not that he could make better steel. But as ever so often quantity and quality is interrelated, and the new methods impacted the quality of the products just as much as the quantity / cost issue. You certainly cannot build a railroad if the material costs of the rails are prohibitively large. But you also cannot operate a railroad for very long if there are too many gruesome accidents because rails fracture too often due to the fluctuating quality of the iron / steel. And you don't even need to consider erecting highrisers if there is the slightest doubt about the quality of the elevator cables.
The final result of the steel revolution was that the quantity of quality-guarantied steel produced in new ways started to grow exponentially ever since. What happened is that the steel revolution allowed new products that in turn caused major changes of their own. Reliable, safe and cheap railroads allowed to transport people and products far more quickly and cheaply than before, which allowed to open up vast stretches of so far undeveloped areas like the "West" of the USA, mixed people of all kinds of backgrounds, bred social problems and improvements, and so on and so forth. The car industry is unthinkable without steel. In short, an avalanche was started that is still gaining momentum and power - just look at the development of the World's steel production below.
|In march 2018 the President of the USA, one Donald Trump, imposed import taxes on steel. One of the reason is that China now dominates world-wide steel production. According to newspaper, the production capacity is 2.4 billion tons (or be 2400 million tons in the figure above), with China accounting for about one half. However, only 1.5 billion tons are needed, resulting, as always, in some kind of trade war if not a real one.
|One cannot possibly overestimate the importance of steel for the development of
humanity in the second half of the 19th century and most of the 20th century. Just a very few reminders. Without affordable
steel, having specific and reliable properties, you would not have:
If you have all that, you can finally go into electricity and make the really big changes.
|Of course, a lot of other things happened around 1870 and later that also changed the world in major ways for better or worse. The Germans invaded Gaul (then called France), for example. Foremost in my mind, however, is the scientific revolution giving us, for example, electricity. However, no electricity without steel. Things are interconnected. This is as trite a statement as one can make, so let's stop here and just give a very brief look at some of the key breakthroughs made in the steel revolution. I will do that by looking at some of the guys whose names are attached to these developments. Biographical details can be found here.
|This is doing grave injustice to many other scientists and engineers. All big
names in science and engineering owe their success to a smaller or larger extent to their colleagues, including the already
dead ones. There are no true scientific giants. Some scientists and engineers are (intellectually) considerably taller than
the average but they are not giants. They stick out of the crowd because the stand on the shoulders of all the others that
form a kind of intellectual pyramid.
More details about the "steel revolution" and other key people involved can be found in the link.
|The Bessemer Process
|On August 13th, 1856, Henry Bessemer presented a paper entitled: "The manufacture of malleable iron and steel
without fuel" to the British Associations for the Advancement of Science, an important organization. The paper described
that by blowing air through molten pig iron, the carbon, silicon
and manganese in there were removed, making the iron malleable.
Before that, between Oct. 1855 and Feb. 1856, Bessemer had filed for 3 patents relating to running air or steam over or through molten pig iron. What exactly was going on on his mind, what he found out by his own experiments, and to what extent the was aware of the work of others, is a long and muddled tale; see the link for some details. The obsession of Bessemer and all the others with filing plenty of patents just makes clear once more: the steel revolutionaries were primarily concerned about making money and not all that much about advancing science and engineering.
| Bessemer must have known the basics about the role
of carbon in iron and that it could be removed by oxidation even so he coyly pleaded ignorance of iron metallurgy. Note
that his paper emphasizes that he can do things " without fuel". Note also
that the idea of blowing air through a large quantity of molten cast iron may not be seen as all that innovative. It carries
a few connotations, however:
|In the 1856 meeting Bessemer did manage to convince a number of iron masters present
that his invention was of interest. Licenses were taken and large-scale experiments were started right away. After all,
there was a real potential to "fine" tons of pig iron within 30 minutes or so, a tremendous increase in productivity.
Within just a month, the honeymoon was over. A big problem had emerged:
|The iron produced by using Bessemer's methods was completely de-carburized wrought
iron but cold short as well as hot short, and "oxidized to a cinder"! There were a number of reasons for this
severe disappointment, details are here.
In short: The process had worked on a kind of lab scale but not on a production scale. The major reason was that normal English ore (in contrast to the "lab grade" ore Bessemer used) contained phosphorous and the Bessemer process could not get rid of phosphorous.
This problem could be circumvented by using phosphorous-free ore, making suitable pig iron. Unfortunately, English ore didn't qualify. That caused caustic comments by Bessemer's contemporaries. For example J. Percy, a renowned authority on iron and steel making, remarked in 1864: "....it is only pig iron practically free from phosphorous that Bessemer can deal with satisfactorily and such pig iron forms merely a fraction of the total produced in this country. It will be time enough for Mr. Bessemer to sneer at puddling when he can show how that laborious operation may be dispensed with. He has not yet done so."
Swedish pig iron "worked", however, as was more or less accidentally discovered during the frantic work Bessemer and others invested for about 18 month. It just tended to "blow cold" (not staying liquid) because besides phosphorous it also lacked silicon and thus a booster of temperature.
The next problem that came up was the production of steel. Taking out the carbon completely (i.e. making wrought iron) was no problem anymore but there was no way to stop the process at precisley the the right moment to retain a defined concentration of carbon as needed for steel. The solution was to re-carburize the melt with "spiegeleisen", a manganese - iron - carbon alloy that some Germans made. Robert Mushet, a big name in iron / steel, had patents on this and some cooperation was needed. Spiegeleisen (literally "mirror iron"), via its manganese, also took care of the sulfur and thus of hot shortness
Finally, Bessemer could produce good iron / steel also with "native" (Lancashire and Cumberland) pig iron that happened to be low enough in phosphorous and sulfur and the first mass production could start.

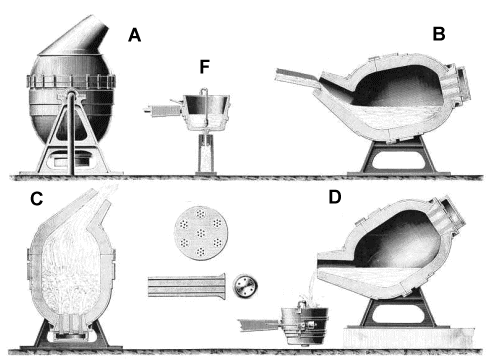

|Bessemer converters became a common sight and accounted for about 30 % of the World's iron / steel production between 1880 and 1900. The converter itself was a marvel of engineering; here is a picture of a real one. The picture below shows drawings from an old illustration of uncertain origin.
|What we see is:
More details about the Bessemer process can be found here; and here is a big picture of the real thing.
|The phosphorous problem was "solved" by using phosphorous-free pig iron. That was not a real solution, of course. The real solution can be found below under the heading "Thomas Steel", an important variant of the Bessemer process covered below.
|Around 1892 the total amount of iron and steel made with the
Bessemer process and the similar Thomas process surpassed the production by puddling . The data below show this. They also show that another invention, the Siemens - Martin process, overtook Bessemer in 1900 and everything else in 1910.
We also see that making steel with Huntsman's crucible process or variants thereof declined synchronously with puddling. Note, however, that all the new processes contain the essence of the crucible process: they produced liquid iron or steel that could be cast.
|Before I deal with the Thomas process and the Siemens - Martin process, I will give another quick look on the scale of the iron / steel production in the late 19th century. The "big" picture shown above gives the impression that not much iron and steel was produced between 1870 and 1900. That is wrong! It's just a matter of scales! So let's look at what really was going on in those years:

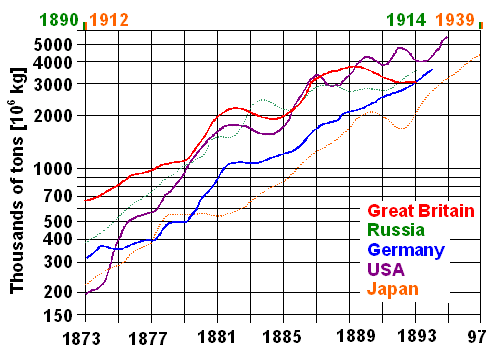

|All curves increase linearly on average, indicating exponential
growth. All curves have roughly the same slope, indicating a ten-fold production increase about every 20 years
or a yearly average growth rate far in excess of 10 %. You just can't install all the infrastructure needed more quickly,
1892, when the Bessemer / Thomas processes overtook the puddling process worldwide, Great Britain alone produced about 3 million tons of iron / steel. In 1870 it was about 500 000 tons, still quite a bit - and roughly 50 000 tons were already made with the Bessemer process that came on-line just about 10 years earlier. It just takes some time (not to mention lots of money) to build he heavy-duty infrastructure required with many novel components and considerable risks for the investors.
|The Thomas Process
|Many iron ores contain some phosphorous and so does the pig iron smelted from
them. Blowing air through liquid pig iron obviously did not remove the phosphorous. It neither bubbled out as a component
of a gas like carbon, nor did it become part of slag or dross swimming on top. The reasons for this are actually quite involved;
here is a short discussion.
If you want to get rid of the phosphorous, you must make it part of some slag. The Bessemer process did produce slag. The oxidation of iron produced FeO, known to us by now as wüstite, and the oxidation of the silicon produced SiO2. Together you get the ubiquitous fayalite - wüstite slag well known from millennia of smelting. Phosphorous would be oxidized to P2O5 during the air blast but would not be able to compete with the SiO2 in the reactions needed for forming the stable slag ingredients. It would be reduced again by the CO formed in large quantities and then remained in the pig iron.
The only logical way to remove it thus was to "catch" it with something else. Limestone (calcium carbonate, CaCO3) added as flux could do the trick but it would also corrode the refractory silica-bearing bricks lining the converter.
With hindsight (and some knowledge of high-temperature chemistry) it is relatively clear what happened but in 1870 things weren't that clear.
|For obscure reasons, the words "acidic" and "basic" come up a lot in this context. What that means is bisected in some detail here; suffice it to note that the normal bricks, always containing some silicate (something ending with SiOx ) were acidic and could not deal with basic limestone or quicklime.
|What kind of brick should one use for the lining? Without compromising the primary job of the lining like mechanical and chemical stability in a very hot and corrosive environment. Not to mention that platinum bricks (they migt work) or something else very expensive wouldn't do either. One Sidney Gilchrist Thomas, a civil servant with an interest in iron making and metallurgy, took the bit in his teeth and set out to solve the biggest problem of the 1870 iron and steel industry. He enlisted the help of his cousin Percy Carlyle Gilchrist, a chemist who worked for an iron making company. They worked hard but had no luck for several years. Eventually the iron mill Gilchrist worked for gave them some support and they started experiments with a small lab-type converter, trying all kinds of materials they selected on "theoretical" grounds. They finally succeeded, announcing the Gilchrist - Thomas process during a meeting of the Iron and Steel Institute in London, March 1878.
|They didn't hit it off a first. Almost nobody was ready to believe that two amateurs
had beaten scores of professionals who worked hard at solving the biggest mystery of the iron industry in the 1870ties:
how to process phosphorous containing iron. Finding a way was a big issue because it would allow to use the phosphorous-bearing
ores that formed the vast majority of the known ore deposits.
Believes and doubts are one thing, an actually working process is another. The Gilchrist - Thomas process worked - and fame and wealth eventually descended on the two.
What was the big trick? It looks actually deceptively simple. Just line your Bessemer converter with bricks made from dolomite, a calcium magnesium carbonate (something like CaMg(CO3 )2). Dolomite is a rather common rock; parts of the Alps consist of it. "Calcining" (heating) it produced calcium and magnesium oxides. The stuff was ground up, mixed with dry tar, pressed into bricks and used for lining a converter. Now add a fitting amount of burned lime ("quicklime") as flux to your molten pig iron, and your phosphorous will end up as calciumphosphate (Ca3 (PO4)2 in the (easily removable) slag that forms now - while your lining will not be attacked.
|It was actually necessary to have quite a bit of phosphorous in the melt for the process to work. The Gilchrist - Thomas process wasn't quite that simple, after all. Once more, success depended in doing a lot of things just right.
|The Thomas process became far more important than the Bessemer process since 90
% or so of the world's pig iron is phosphorous rich. Don't be deceived by the percentage data above
where the Thomas process has about the same percentage as Bessemer. In 1960 a certain percentage meant a hell of a lot more
production in tons than the same percentage in 1920, for example.
The Thomas process allowed Germany, Sweden, France and others to use their ore deposits for making large quantities of iron and steel. The production peaked around 1910, 20 years after the Bessemer heydays - and by then the world production had increased at least 10 fold!
|As an unexpected fringe benefit it turned out that the phosphate-rich slag was an excellent fertilizer. "Thomas flour" was the first synthetic fertilizer and found a big and receptive market. It was still used in the 1950ties and 60ties in the farming town I grew up in. Here is a commercial from around 1940
|However, while Bessemer and Thomas most certainly were great inventors and remarkable personalities, who left an indelible mark on the iron and steel history, the world at large could have done without them. The competing Siemens - Martin process came in only a little later and was so much better that it dominated the industry for a long time as the percentage figure above nicely demonstrates.
|The Siemens - Martin Process
|The Siemens - Martin Process is also known as "open
hearth" or "regenerative furnace" process. Let's start
with Mr. Siemens' contribution. The first thing to know is that there was not just one Siemens involved but a tightly knit
big bunch of them. The two Siemens brothers
most important in this context are :
|Sir William was scientifically minded and used his knowledge to come
up with the regenerative principle for furnaces. Or did he? During the crucial time around 1847 his brother Friedrich worked
with Wilhelm; and it is actually Friedrich who got a patent.
If Wilhelm's or Friedrich's contributions was more important I do not know. The Siemens' brothers however, never produced
steel themselves with their invention.
The Martin's (father an son) in France were the first ones who got a licence, and their work was instrumental for finally coming up with a working Siemens - Martin furnace (see below).
|What is it all about? Well, at least Wilhelm's mind was full of the new insights from a scientific revolution in the field of what we now call thermodynamics , tied to names like Carnot, Clapeyron, Joule, Clausius, Mayer, and Thomson. In particular he accepted the new and revolutionary notion that heat was not a substance but a form of energy.
|As far as I can make out, he (or both brothers) used the new scientific knowledge
to figure out answers to two simple questions:
The catch word was and is"regenerative energy". That means to employ energy usually wasted for doing something useful. You may brake your car electrically for example, using the energy that otherwise just makes the brakes hot to charge a battery. Or you use the energy still contained in your hot motor exhaust to run a turbo charger. At the time of Wilhelm and Friedrich the meaning of the term was the same but in addition it also meant to be generally energy conscious. You can do that only after the concept of energy is clear.
|Siemens realized that in burning regular fuel for producing heat, a part of the
energy produced is used to heat up the fuel itself. There is not much you can do about that as long as you burn solid matter
- wood, charcoal, normal coal, coke - but if you used the town
gas that resulted from coke making, you could pre-heat
it for free if you used the heat contained in the hot exhaust gases of any furnace treating pig iron.
The Siemens brothers, in essence, came up with the idea of a heat exchanger. Run the hot exhaust gases through a chamber filled with stacked bricks, and you heat up the bricks. Then run your process gases through these hot bricks and you heat up the gases. Have two heat exchanger units and switch back-and forth from one to the other. Here is the classical drawing showing what the whole contraption looks like:

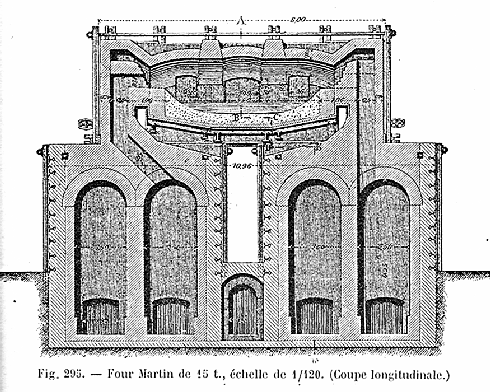

|I have looked at that drawing many times and could never make head or tail of it. If you can, you have my heart-felt congratulations. If you cannot, you might profit from activating the link to the large schematic picture. There the concept is easy to understand.
|Let's just say that a working Siemens - Martin regenerative furnace (always of
the reverberatory kind) could get a substantial
mass of iron / steel not only up to the melting point of pure iron at 1538 oC (2629 oF) but up to
1800 o C (3272 oF)! And it did so with rather little fuel. That's an impressive achievement - but
is it useful? What is the advantage for fining pig iron and making steel? Can you see it?
On the surface it is not all that obvious why the Siemens - Martin process is so much better than the Bessemer and Thomas processes. Looking a bit more closely, however, produces a long list of advantages:
|The Internet offers very little about Pierre-Émile Martin and his father François Marie Emile Martin - except that the Siemens - Martin furnace translates to "four Martin" in French (of course). I'm not going to help the French by providing extensive insights into the role of the Martins but will give only hints.
|The Siemens brothers actually could not produce
liquid steel since in their prototypes the linings of the furnace melted around 1600 oC (2912 oF).
If you look at their contraption, it's not something easily and cheaply build and re-build. Experiments must have been expensive
and slow. Some experience with iron and steel technology (that the brothers did not have) would also have been quite useful.
Pierre-Émile Martin and his father François Marie Emile, two French iron and steel experts, liked the concept, took out a licence and began to work. They solved the "melting brick problem" by using better material, and they probably added a lot of other improvements.
The Martin's succeeded in making very good steel with the regenerative furnace; their product was awarded a (then very prestigious) gold medal at the 1867 World Exhibition. Siemens got one too for the invention of the furnace! The Martin's also filed patents of their own and - unavoidably - had them challenged by some Siemens. The ensuing litigation reduced Martin to virtual poverty while others were making large profits using "his process". Finally, when Martin was 83 years old, the Comité des Forges de France (Ironworkers Guild of France) instituted a fund for him that was supported by all of the principal steelmaking countries. Barely one week before Martins death, the Iron and Steel Institute, London, honored him with its Bessemer Gold Medal.
|The Siemens - Martin process dominated the World production of iron / steel for more than 80 years. Of course, it also had some drawbacks (like being slow) and after about 1970 "oxygen-blast steel" and "electro steel " took over; see above.
|Oxygen-Blast and Electro Steel
|We are now entering the era of modern steel making and I will keep it short.
|Oxygen-blast steelmaking (also known as "Linz-Donawitz-Verfahren steelmaking" or "oxygen converter process") simply blows oxygen and not air on the liquid pig iron. Linz and Donawitz are Austrian cities, and Austrian companies first employed this process. The main guy pushing this technique was the Swiss engineer Robert Durrer (1890 1978), who studied and worked as a professor at the Berlin Institute of Technology until 1943.
|Well, oxygen should be more effective than air, that's obvious, but
how to get the stuff in quantity and cheap? Carl von Linde
(German) made it possible by extracting liquid oxygen from liquid air by distillation in 1895; around 1930 the process provided
plenty of cheap oxygen. But that's a long story in itself. Suffice it to say that the Linde Group,
founded by Carl von Linde, is presently the world's largest industrial gas company.
After the second world war, the Austrian Iron and Steel mills in Linz, making the modern kind of the Ferrum Noricum, were majorly kaputt, owing to allied bombs. The decision was to rebuilt by developing and utilizing a new process: oxygen blasting. As simple as is sounds, it took some dedication to overcome the problems. The first experiments 1949 (my birth year) yielded this result: "Der hergestellte Stahl war miserabel" (the steel produced was abysmal). The rest is history.
|You can use all the methods covered above, e.g. blow oxygen through a Thomas converter and so on. There are several advantages to using oxygen instead of air, suffice it to mention that you do not get nitrogen into the steel, typically not a good thing, and that oxygen blasting makes processing considerably faster and cheaper.
|Electro Steel is made in an electric arc furnace. The principle is simple. Put graphite electrodes (usually three) right over
the (solid or liquid) pig iron and run a substantial current from the electrodes to the iron. For doing that you need to
ignite an electric arc between the graphite and the iron, and there it gets rather hot. Temperatures up to 3500 °C
( 6332 °F) can be reached, allowing alloying with very high melting point metals like tungsten (W) or molybdenum (Mo).
In essence, you feed the energy needed to increase the temperature of the iron into the system by electrical means and thus with very high efficiency.
|You can blow in some oxygen to take carbon out, remove other stuff by forming
proper slags, dissolve scrap iron and so on. The process is faster than the Siemens Martin process, and a furnace can be
far more compact, allowing easier access and so on.
However, you better have a sizeable electric power plant nearby. An electric arc furnace is not something you can plug into your kitchen outlet, it needs serious juice for running. Also, you better know how to handle powerful electric arcs; not an easy thing to do. It's like trying to control a flash of lightning. It is not very cheap either.
Electric arc furnaces nowadays are typically used for producing expensive high-quality steels. 29 % of the steel produced world-wide comes from electric arc furnaces right now - about 450 Mio tons!
© H. Föll (Iron, Steel and Swords script)
