More to Recombination

Some General Remarks

In the treatment given so far, we looked at the direct recombination in direct semiconductors (producing light), and the recombination via deep levels in indirect semiconductors.
The theory behind it all was the Shockley-Read-Hall (SRH) theory. What is left to do is:
Expand the SRH model.
Discuss recombination mechanisms not intrinsically contained in the SRH model - for example "Auger" recombination with a conduction band electron as a third partner, or recombination via "excitons". Whatever it is, it will become important later, as you can glimpse by activating the links.
Lets start by looking a bit more closely at the results we already obtained from the SRH theory. The final formula for net recombination via deep levels was
R  =  UDL  =

v · se · N DL · (ne · nh   –  n i 2)

nenh  +  2ni · cosh EDLE MB
kT
With R = net recombination rate under non-equilibrium conditions, NDL = concentration of deep levels, EMB = mid-band level, v = (group) velocity of the electrons (and holes), and se = scattering cross section of the electron (or hole).
That we are considering non-equilibrium is evident from the term ne · nhni 2 which would be zero for equilibrium, according to the mass action law.
So far we considered non-equilibrium situations where ne · nh > ni2, and then the recombination rate must be larger than in equilibrium; R > 0, which is born out by the equation above.
Now just for the hell of it, lets reverse the situation and assume that ne · nh < ni2 , i.e. that we have not enough carriers of both kinds around.
As we will see later, this is a rather common situation in reversely biased pn-junctions. Lets see what kind of information we can draw from our equation above. It will lead us to the concept of the " generation lifetime "


Generation Lifetime

The condition ne · nh < ni2 implies that the quasi Fermi energy for electrons is lower than that for holes, i.e. EF e < EF h. Lets see what that implies in a little picture

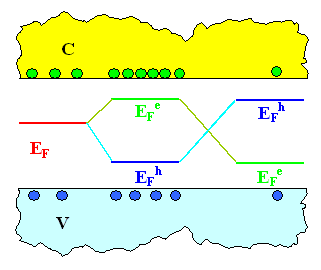

Quasi Fermi energies, recOmbinatiOn and generatiOn
On the left we have equilbrium, with a somewhat higher density of electrons than holes - the material is (barely) n-type. In the middle we have the typical situation for non-equilibrium with excess carriers of both types (e.g. because we generate electron - hole pairs by illumination and draw a photo-current). The population density of both carrier types is increased; EFe > EFh .
On the right we have the hypothetical situation that EF e < EFh, the population density is now decreased for both carrier types.
This means that ne · nh << ni2 , and in a first approximation we may simply replace (n e · nhni2) by n i2. This yields
UDL  =  v · s e · NDL · (ni )
2cosh [(EDL -– EMB)/kT]
The first essential result is that UDL is now negative.
Since UDL was the difference between recombination and generation, we now have a net generation rate of carriers with a rate UDL as given above.
We may thus equate UDL with Gnet , the (net) generation rate: UDL = Gnet
Now we use a little trick and simply define a generation life time tG by
UDL  =  Gnet  :=   ni
tG
Insertion and comparison gives us for tG


t G


 =
2cosh EDLEMB
kT

v · se · NDL
We could have used this trick before, too, for a relatively general definition of the recombination life time tR. Let's see how it goes.
We start with the equation for small deviations of the carrier concentrations from the equilibrium values for U DL which we can identify as the net recombination rate Rnet in this case
U  = Rnet  =   v · se ·NDL ·   [ne(equ)  +  D n] · [nh(equ)  + Dn]  –  ni2
ne (equ)  +  nh(equ)  +  2 Dn  +  2ni · cosh[(EDL - EMB)/kT]
With Dn << ne, nh, and ne(equ) · nh(equ) = ni2 , we can simplify this equation to
Rnet  =  v · se · NDL · Dn
1 + [2ni/(ne (equ) + nh(equ))] · cosh[(EDLEMB )/k T ]
Again we define tR by Rnet := Dn/t R , which gives us as a relatively general formula.
tR  =  1
v · se · N
 ·  æ
ç
è
1  +  æ
ç
è
2ni
ne(equ)
 +  nh(equ) · cosh EDLEMB
kT
ö
÷
ø
ö
÷
ø

We see immediately that for doped semiconductors, i.e. ne(equ) or nh(equ) >> ni, we get the old result
t R  =  1
v · se · NDL
It is interesting to note that the dependence of the two life times tR and tG on the exact position on the deep level in the band gap is not symmetric.
tG is much more sensitive to the exact position, as is shown in the picture containing both general functions (still containing the cosh term).
As we must expect, tG = 2tR if the deep level is exactly in midband position. For deviation from the middle position, the generation life time can be much larger then the corresponding recombination life time.
RecOmbinatiOn and generatiOn life time

Surface Recombination

In real life, deep levels are not always distributed homogeneously in the bulk, but may only exist at internal or external surfaces (i.e. grain boundaries, interfaces, or simply the surface of the semiconductor. We will only use the word "surface" from now on which stands for all kinds of interfaces.
In this case we have to introduce an area density or surface density of deep levels, NsDL, and our recombination (or generation) rates are now confined to the interface in question, denoted by Rs or Gs, respectively.
If we add possible surface states to the general mechanism of the SRH theory, we obtain for Us, the net recombination (or generation) rate at the surface (be happy that we do not deduce this formula!):

Us  =  Rsnet  =


v · se · sh · NsDL · (n e,s · nh,s  –  ni2)
se · æ
ç
è
ne,s  +  ni · exp   EDL - EMB
kT
ö
÷
ø
sh · æ
ç
è
nh,s  +  n i · exp  E DL  –  EMB
kT
ö
÷
ø
With the scattering cross sections separately given for electrons and holes, and with the n e/h,s denoting the volume concentrations at the surface(?)
What is the ne/h,s, the volume concentration of the carriers at the surface
First, it is a surface concentration, i.e. measured in particles per cm2 or just cm–2
Second, it is what you would have on a slice cutting through the volume of a crystal. In other words, we have for a lattice constant a, which is the smallest meaningful thickness of a slice in a crystal
ne/h,s  =  ne/h · a
However, it would be too simple minded to just take the bulk values of ne/h! In general, there will be some band-bending near the surface, induced by the same deep levels (called "surface states" in this case, that give rise to the surface recombination. Look at the consideration of a simple junction to see how it works.
So you first must determine the volume concentration at the surface under the prevailing conditions and then convert it to surface concentrations..
OK, now we know what the symbols in the formula mean, but what can we do with it?
Well, lets make some approximations to see what happens. First, as always, we consider the simple case of small deviations from the equilibrium values of n e/h,s, ie. ne/h,s = ne/h,s(equ) + Dns and Dns << ne/h,s; moreover, we assume that se = s h = s.
We now are familiar with this approach, and obtain

U  =  Rnet  =   v · s · Ns DL · Dns
  := Sr · D ns
1  +  2ni/[ n e,s(equ) + nh,s(equ)] · cosh[(EDLEMB)/kT]
This looks rather familiar
Again the recombination rate at the surface is proportional to the excess carrier density (at the surface), and we define
U = Rnet := Sr ·Dns , and the quantity Sr  is for surfaces what the recombination time tr (or to be more precise: 1/t r) is for the bulk.
Since now ns is a surface concentration (yes! it is confusing), Sr must have the dimension cm/s, it is therefore called the surface recombination velocity.
As before, noting that ni/(ne,s(equ) + nh,s) << 1 under normal conditions, we may simplify to
Sr  »   v · s
If we again play the game from above, switching recombination into generation, we obtain the surface generation velocity Sg
Sg  =


v · s · NsDL
cosh  EDLEMB
kT
Ok - you get the drift. But what does it signify?
Well, we have seen that it is fairly easy to "kill" the (bulk) life time by minute contaminations of some contaminants in the bulk of the crystal. It is even easier to kill the surface recombination velocity, i.e. make it very large.
And while a short volume life time is usually (but not always) pretty bad for devices, a large surface (or really interface) recombination or generation velocity is very bad for sure .
This is one reason why the Si/SiO2 interface has been such a tremendous success story: Its interface recombination velocity can be exceedingly small, say 0,1 cm/s. But just getting some process parameters wrong a little bit while making the oxide, may change that dramatically - you may have surface recombination velocities several orders of magnitude larger.
Unfortunately, many interfaces have recombination velocities far larger, even in the best cases! "Passivation" of the interface or surface states, usually including some heating in hydrogen atmosphere and some black magic, is an overwhelmingly important part of semiconductor technology. There is a special module devoted to some of these topics.


Other Channels of Recombination

So far we have covered direct recombination and recombination via deep levels. Each mechanism is called a recombination channel for obvious reasons, but there are more than just the two channels considered so far.
Some more mechanisms will be covered in other parts of the Hyperscript, here we just give an overview.
Important at high doping levels is the Auger recombination.
In this case, the energy (and momentum) of the recombining electron - hole pair is transferred to a second electron in the conduction band.
This is a recombination channel that always allows recombination in indirect semiconductors and thus puts an absolute limit to the life time. It is clear that the probability of such an event requires that three mobile particles - two electrons and one hole - are about at the same place in space; its probability thus can be expected to increase with increasing carrier density.
Another mechanism is recombination via shallow states, especially via the energy level of the dopant atoms. This includes transitions from a donor level to an acceptor level or to the valence band, and transitions form the conduction band to an acceptor level.
This mechanism is especially active at low temperatures (when there are free state at that levels). It is not very different from band-band recombination for direct semiconductors and can be treated as a subset of his case.
Finally, there is recombination via excitons . This is a very important mechanism for some semiconductors, in particular GaP, because it allows an indirect semiconductor to behave like a direct one, i.e. to emit light as a result of excitonic recombination.
What is an exciton? And how does it achieve the remarkable feat mentioned above. Well, activate the link above (getting ahead of yourself in the lecture course) and find out.


Several Recombination Channels in Parallel

What happens if the carriers have several possibilities for recombinations; i.e. several recombination channels exist in parallel?
For example, if Auger recombination is comparable in likelihood to direct recombination - what will happen?
Again, this is covered in some detail in chapter 5, here we only note the important principle:
The various processes are independent of each other, i.e. the channels are switched "in parallel".
The total recombination Rtotal and the effective recombination time ttotal are simply given by.
Rtotal  =  R1 + R2 + R3 + ...

1
ttotal
 =  1
t1
  +   1
t2
  +   1
t3
  +  ...


Appendix : Changing from Volume to Surface Concentration

Changing from volume to surface concentration might be a bit confusing, especially for mathematicians.
If you imagine a distribution of (mathematical) points in space with an average density of nv , and then ask how large is the density of points ns on an arbitrary (mathematical) plane stretching through the volume, the answer is ns = 0, because mathematical points are infinitely small and mathematical planes infinitely thin - you never will cut a point with a plane this way.
Our "points", however, are atoms - they are not infinitely small. Our planes are not infinitely thin either, their minimal useful thickness corresponds to the size of an atom, or to a lattice constant.
So in computing a surface density of atoms, you can do two things:
1. You actually count the atoms lying on the chosen plane of the crystal (making sure you know if you want your density for a lattice plane or for crystallographically equivalent sheets of atoms in a crystal (This is not the same: the density of atoms on a {110} atomic layer of a fcc crystal is only ½ of that of a {110} lattice plane ; if you don't see it, make a drawing!).
2. You just take the atoms contained in a sheet with thickness a. Its volume thus is A · a for an area of A cm2. Since a volume of 1 cm3 contains nv particles, a volume of A · a contains nv · A · a particles; the surface density nS thus is
nS  =  nv · A · a
A
 =   = nv · a
