10.2.3 Smelting Wrought Iron, Steel and Cast Iron
|Steel by Carburization?|
|Let's start by a quick look at a controversial issue: Can one make steel from wrought iron by "carburization"? The answer is certainly "yes" - as long as the term isn't specified. It is certainly possible to get carbon from the outside into originally clean iron ("wrought iron") if you have high temperatures at your disposition - and all the time in the world. Steel has indeed been made in this way in the 18th century (by a process called "cementation"); I will get to that.|
|However, the issue here
is not the 18th century but the first millennium BC and the many publications
stating that some old artifacts consist of "carburized iron", vulgo
steel. The directly or indirectly implied message is that some ancient smith
wrought iron and managed somehow to get
substantial amounts of carbon into an object like a knife blade by carburization while he is forging it.
Here are a few examples:
|Rehder, in his
book, makes that quite clear. He has two independent arguments for his
|The eminent archeometallurgist Donald B. Wagner, undisputed expert for the Chinese metal history, begs to disagree1). He bases his criticism on Rehder's CO concentration calculations, reasoning that enough of the stuff could be around in a forging hearth. He also refers to writings from the 18th century and to some more recent experiments were "carburization" during forging was claimed or demonstrated, respectively. What Wagner proves beyond doubt is that one can carburize wrought iron, indeed - as long as only thin layers or tips of needles are considered.|
|The issue is rather
easy to resolve. How much carbon is available for moving into the iron from the
outside does depend on the source of carbon, of course. Carbon monoxide,
splitting into carbon and oxygen on the surface of hot iron, is far more
efficient in providing carbon atoms at the iron surface than solid charcoals. A
gas can envelop the iron at any moment, whereas a solid piece of charcoal only
touches the iron at few spots at best (see all the way below), and the carbon -
iron contacts are even destroyed as soon as a carbon atom breaks off and
disappears into the iron.

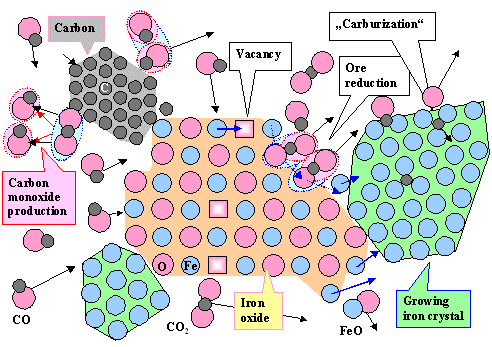

This is clear from the picture below. It is our old copper picture, of course, just slightly changed for smelting iron now. It has one added feature: carburization by CO. It still does not show slag formation and other "details".
So the source of carbon for "carburization" is important, indeed - but not crucial for the topic.
|The real problem comes from
diffusion, from the
way carbon atoms move into the inside of iron. Once a carbon atom has made it
below the surface layer of the iron crystal, it moves around randomly, as
numbers one learns, for example, that you need to keep your piece of iron
at 1000 oC (1832 oF) for about 3
hours if the carbon should penetrate to a depth of about 3 mm. That
would just about "carburize" a knife blade. Not uniformly though,
mind you. The carbon concentration near to the iron surface would be much
higher than in the middle of the blade.
So you can get carbon inside iron. In principle as deep as you like, but at "normal" temperatures, this takes far too long to be practical. If you want to go for 6 mm in the example above, it will take 9 hours; 9 mm take 27 hours and so on. If you increase the temperature a lot (not all that easy to do in an ancient forge), the time required does come down but grains will grow larger and so on, counteracting your efforts to "harden" the iron with carbon.
What you can do and what has been done, is to "case-harden" your workpiece. You supply a thin layer of carbon-rich iron or steel around your wrought iron inside by keeping it in your forge fire at the right place (where the carbon monoxide is produced) for a while. If you quench and possibly even temper your piece after that, the outside or "case" could well be very hard steel.
However! While this is not too difficult to achieve in a modern hearth with a constant air supply, ancient hearths were "blown" with an intermittent stream of air, and this caused the reducing part of the fire to "breath" - moving back and forth. The gradual disappearance of the coals also moves the proper place around, and it is not all that easy to move your workpiece accordingly. If your workpiece is large like a sword blade, you can only keep a small part of it in the right place anyway.
And don't forget: whenever your iron is not in the reducing part of your fire, de-carburization takes place! First, you oxidize the iron, consuming the surface-near and "carburized" parts, and second, the carbon diffuses out of the iron just as readily as into the iron. If your pieces carburizes or de-carburizes simply depends on the balance of depositing carbon atoms on the surface and sweeping them off. Only in a reducing CO-rich atmosphere deposition wins.
All in all, carburization of a thin layer of iron in an ancient forge fire is possible - but not easy. Carburizing a solid large piece of iron this way is impossible, though.
|The long and short of this is simple:|
|Smelting Wrought Iron|
|Iron smelting throughout the
millennia supposedly produced wrought iron with a very small carbon
concentration. Maybe that's true. At this stage I'm not saying it is, and I'm
not saying it is not. What I am saying first is: Why bother? Wrought iron's
properties as a metal are supposed to be inferior or at best equal to those of
bronze. We know that this is true for the
hardness of the material from comparing it with bronze.
However, wrought iron (and mild steel) offers large advantages on other counts:
|Now we know
better. While wrought iron is not harder than bronze, it does offer
lots of advantages. As soon as people learned the many tricks needed to make
and work iron, there was no good reason anymore to stick to bronze except for
some special cases or because you are conservative. Getting into the new
technology was torturous and painful, with many disappointments and unexplained
mishaps. One only embarks on such an enterprise if there is no choice.
People only switch to unaccustomed food shortly before starving. When was the last time that you ate insects, worms, grubs, or just cats and dogs (or pigs, cheese, ...)? Potatoes weren't originally welcome in Europe, many Asian people wouldn't know what to do with wheat, and I still don't know why my wife thinks that corn is food for people before it has been processed by a pig.
It is thus no accident that iron came into its own at the collapse of the Bronze Age. As we have seen in the preceding sub-chapters, the occasional very early iron came in all kinds of variants - copper-rich, "carburized" - with no recognizable relation between the composition and the intended use, see above. Some bracelets were "steeled" while some knifes were not. It all points to those ancient smiths simply not having a clear idea about the various qualities of iron / steel. They just did their best with the haphazard pieces they had and in all likelihood were quite happy if they could make anything worthwhile for keeps. We can be rather sure that most products of early iron technology didn't "work" and were simply thrown out.
Eventually, however, iron could be made reproducibly and reliably, and the secondary technologies like dealing with the red-hot bloom, making half-way clean iron bars on a hearth by forging, plus making various shapes from these bars by forging and fire-welding, became known and were mastered.
|Above I have exorcised the
"carburization demon". Now I need to remove the "wrought iron
was first" demon. Did you realize that all the carburization talk only makes sense if one assumes that early iron
workers could only make wrought iron? Only
then do you need to "carburize" the carbon-free stuff if you want
That's indeed what is mostly assumed. And that assumption was backed by theory as far as it goes. Nevertheless - it is wrong!
|Copper smelting technology at 1200 BC
was developed to a point where it would have been no problem at all to produce
anything ironwise: wrought iron, steels with little or a lot of carbon, and
cast iron. All you needed to do was to use the existing technology with iron
ore instead of copper ore and a somewhat increased charcoal to ore ratio. A few
minor adjustments here and there and off you go, making cast iron, for example.
True, we have not found cast iron artifacts in the Mediterranean between 1200 BC and 1000 AD. Does that mean that nobody could make cast iron? No! It just as well could mean that nobody bothered to make it since it was considered useless. But what about accidentially made cast iron in antiquity? Have we found any? Not really. But then nobody looked for it and if found, it wasn't recognized.
Not everything one can make is actually made. Nobody in the the South American empires (Maya, Aztec, Incas and so on) bothered to make wheels for carts and so on, even so they knew how to do this (they made children toys with wheels). Wheels, considered to be one of the greater inventions of mankind, are rather useless in ancient South-American cultures since there were no horses, oxen or any other animals that could pull your cart around, not to mention the rather steep roads in the mountainous regions or narrow and muddy paths in the jungle.
It is similar for cast iron and high-carbon steel. As all modern smelting experiments prove, you had no problem producing highly "carburized" iron in your smelter. You just didn't want to do that most of the time. Steel is so much more difficult to work with and rusts like crazy in comparison to wrought iron. Its larger hardness isn't so important for most of your everyday iron objects either. It might even be a nuisance. For example, carpenters still use nails that are not made from steel but from rather soft iron for obvious reasons. And cast iron is extremely brittle and thus useless on first sight. On second sight one might do something with it, as the Chinese proved.
We need to realize that the main product of the town smith for the last 3000 years weren't swords, mail and armor. That was made by a few specialized guys. The vast majority of smiths made every-day wrought iron or mild steel things for the always overbearing reason: It is good enough for the job and much cheaper. Your car body isn't made from stainless steel for exactly the same reason.
|In other words: After the iron age
proper had started and enough experience with the new metal was acquired, the
smelters produced the quality of iron that the customers wanted. And that was
mostly wrought iron or mild steel, occasionally steel, and never cast iron. It
is thus small wonder that smelting technologies were optimized - by trial and
error - towards making wrought iron and mild steel.
The question now is:
|The answer is: I don't know. It is
easily possible in theory
but seems to happen rarely in all those experiments people make! The best
one can do is:
Take advantage of the iron-carbon phase diagram. And the peculiarities of the diffusion of carbon in iron. Also don't forget to optimize the movement of the burden down you smelter in relation to the movement of liquids like slag. This involves optimizing the smelter geometry and the kind and quantity of flux you add. Not to forget either: having the right ore lump size distribution is essential. And it goes without saying that how much air you blow in at what kind of velocity is crucial.
In other words: those old smelting masters needed an advanced degree in Materials Science and Engineering. Or did they?
|When my wife makes her famous
"Hefekranz" (braided yeast dough thing, sort of like halla, just
better), she optimizes the relation of yeast to flour, the time at the right
temperature for allowing the yeast to eat the flour and multiply, the mixing of
the ingredients, the nucleation and growth of CO2 -filled bubbles
(this takes optimizing the reaction temperature and time to allow proper
diffusion and Oswald ripening) and the addition of secret ingredients like
sugar and God knows what. I gather that the right kind of
size?) is very important, and that various temperatures play a significant
role. It is an incredibly complicated process and I have never managed to
calculate what's going on.
As far as my wife is concerned, she bakes a cake, following the working recipe of my mother to a dot. Nothing to it. Works all the time.
|Long ago I suggested to try a few changes to the recipe. Use different flour for a chance - maybe the product gets better? My wife just gave me that look. Of course she was right. The probability that an already very good product gets worse if you make changes in the recipe are far larger than that it gets better.|
|Good cooking recipes were obtained by
a long series of trial and error, and it doesn't matter if you cook food or
iron ore. Eventually there are working recipes. They are somewhat different
from region to region but they work for the local customers. Maybe the Italian
food is better than the German food; in Germany we use German recipes anyway.
But even in Germany, recipes for "hefekranz" vary quite a bit from
here to there. So all the good wives, about to make a hefekranz for their
deserving husbands, use different recipes - but only up to a point. All
hefekranz recipes must have a lot in common after all, if the final product is
to be contained in the bandwidth of what constitutes a hefekranz. Leave that
common ground and you do not get a hefekranz but a Gugelhupf, for example. Also
very good to eat but just not a hefekranz.
Maybe the Roman "Ferrum Noricum" (made from siderite) is better than the North German iron (made from bog iron) but smelting recipes in North Germany were not changed. Using the Roman technique would not have worked in North Germany because the guys there just didn't have the exact same ingredients.
We can be rather sure that every region had their wrought iron smelting recipe that had evolved by trial and error to give satisfactory results for whatever local conditions prevailed. Satisfactory results, not the very best result, mind you. Evolution only goes that far and always leaves a bit of room for future improvements. Just look in the mirror to recognize that. Evolution, after all, has made you.
|What is the common ground in making
wrought iron that all smelting recipes must recognize? Looking at that from the
product, your recipe must assure that
|The first condition is easily turned
into a recipe: Keep the temperature low (around 800oC (1472
oF). The you produce your iron only as ferrite that cannot dissolve carbon. If there is
some carbon for some reason, it will precipitate as cementite
Since reduction of iron ore with carbon monoxide (CO) starts well below this temperature, there is no big problem there (except, of course, setting and keeping the temperature). In the freshly reduced ferrite there is no carbon. If it does not get hotter and turns to austenite there never will be.
|The problem starts with getting your
carbon-free ferrite into some
position below the tuyere. Typically you need
liquid slag for
this. But there is no liquid slag at 800 oC. Nothing helps, you
must have temperatures well above 1100 oC (1472 oF) in
the hot part of your smelter to liquefy slag. You must get your carbon-free
iron somehow through that hot zone without
carburizing and oxidizing it too much.
If you want to make steel or cast iron, the opposite is true.
|This is where the
art of smelting wrought iron starts. It turns into a high art as soon as you don't just want to produce
wrought iron but any kind of iron / steel,
e.g. steel with 0.5 % carbon with some predictability and reproducibility. If
you can do that also with high efficiency,
meaning with as little fuel and ore as possible, you are worth your weight in
gold, I guess.
Let's review what we have in our bag of tricks for moving our carbon-free iron particle down through the hot CO producing and oxidizing zones and to keep them carbon-free if we want wrought iron. I include tricks that might come to mind but don't work:
|1. Envelope your pure iron in
liquid slag at temperatures below 720 oC (1330 oF).
Nice try but can't be done. There is no liquid slag at temperatures that low. Never ever.
|2. Allow some carburization in
the reduction zone and remove the carbon later again.
Carburization, as we learned above, proceeds by diffusion and thus may only affect the outside of our ferrite particles as long as they are not too small. "Burn" off that carburized layer in the oxidation zone by oxidizing and what is left is carbon-poor. That requires that your particles are not to small so only an outer layer becomes carburized, but not so large that they are not fully reduced.
|3. Just run the process
messily (and inefficiently).
Keep temperatures as low as possible and inhomogeneous. Make only the parts above the tuyere as hot as needs be, keeping the opposite parts cooler. The CO produced in the hotter part will spread out as it moves up, reducing ore also in regions closer to the other side. Same thing for the slag. It is liquefied in the hotter parts above the tuyere but in percolating down will spread to the outer parts, sweeping down whatever it finds. Iron particles moving down on the opposite side thus will not spend all that much time in the austenite phase, where the can absorb carbon, and thus stay pure.
|4. Don't mix ore and charcoal,
When a charcoal rich layer burns, producing lots of hot CO, you reduce the ore above it. When the ore layer with the iron comes lower, temperature will go down because the charcoal content is low, and you get your iron down without carburizing it too much.
|5. Oxidize your (more or less
carburized) iron somewhat or even a lot in the oxidation zone. As long as
enough iron is there to make it stick to the bloom developing in the
"cold" region below the tuyere, you need not worry as long as you are
producing carbon monoxide around the bloom, too.
In other words: you now reduce very finely dispersed iron oxide right on the bloom. You might even reduce the iron oxides in slag that lingers there long enough. Since this happens in close contact with some "seed" bloom, you are now growing a wrought iron bloom.
|6. Keep your iron particles large and compact (in contrast to spongy), or more generally, have a small surface to volume ratio. Carbon must diffuse in from the surface and you get lower over-all carbon concentrations in large particles compared to smaller ones at the same conditions. How you can achieve that I don't know. Use the right ores, in not too small lumps? Have the iron particles attached to yet unreacted ore / gangue (protecting their surface)?|
|7. Keep the carbon monoxide busy to reduce FeO wüstite so it does not diffuse into the iron already produced out of sheer boredom because there is nothing else to do. In other words: move your burden down fast enough so when it hits the hot zone some ore is still around. Expressed in scientific words and with equations, that is the official reason for the (wrong but time-honored) theorem that bloomeries can only produce wrought iron. It will work, though. Just not all the time and in all circumstances.|
|8. Your idea.|
|9. Measures that really work and neither I nor you know about.||
|10. Measures that seem to work and that W. H. Lee Sauder and Henry G. Williams III stumbled across by doing lots of bloomery experiments under the influence of beer. My interpretation of what they are doing - and I might be wrong - is: Run your smelter hot and with as much ore as possible. Reduce all iron oxide before it hits the oxidation zone. The iron will re-oxidize but the oxide shell forming around an iron particle will form slag with the other now very hot stuff around, envelop the remaining iron in a liquid slag shell, and trickle down fast to join the bloom below.|
|I'm not really certain about all the
stuff above. Points 2 - 6 might contribute to making wrought iron (or any iron
/ steel) to some extent but I don't know. Sauder and Williams go far in finding
solutions; time will tell how far exactly their approach (and my
interpretation) will get us.
Personally, I still wonder if one can produce wrought iron, meaning iron with hardly any carbon inside, in a smelter at all. A bit further down I will make it clear that making solid iron with a lot of carbon inside is also quite hard.
From "theory" one should expect that a bloomery produces iron with some carbon - not a lot but more than almost nothing!
I'm certain, however, about one thing
|At temperatures above
A1 the iron
assumes the austenite phase. Carbon is soluble in austenite and can get
"in" by diffusion. The
distance carbon atoms can cover at a given temperature during a given time I
length", invoking Einstein. This diffusion length increases exponentially (really fast) with the temperature but
only with the square root of the time
(slowly). If you increase the (absolute) temperature just 10 %, for example
from 1300 K (1027 oC;1880 oF) to 1430 K (1157
oC; 2114oF), the diffusion length increases by 65 %,
while even doubling the time (100 % increase) produces only about a 40 %
Let's simplify that in a strong statement:
|In other words: you
can't keep your iron clean by limiting the supply of carbon. There is always enough around to
mess up your wrought iron. You must limit the diffusion. You must either make
diffusion in the iron slow or you must make it hard for the carbon to get into
the iron by coating it with a diffusion
barrier. Low temperatures in the reduction zone, by necessity above
A1 but as low as possible, were thought to provide the key to
that. But if you keep the temperatures too low, not much will happen.
A completely different approach - the Sauder / Williams way - is to use high temperatures. It looks like this enables efficient slag formation and then efficient protection of the iron particles.
That is quite similar to what we do in microelectronics. We must keep bad atoms like copper or iron out of the silicon at all costs. Low temperatures would be fine but then you can't process your silicon either. So use a diffusion barrier, a thin coating of something inside which the bad atoms diffuse so slowly that they will not make it to the silicon or are "eaten up" because they react with the stuff
|All things considered, I'm not too sure about what exactly you need to do to produce only wrought iron. I'm not sure either if that was ever done. The complexity of the problem will become a bit clearer when we now look at making steel and cast iron.|
|Smelting Cast Iron|
|Now let's go to the other extreme.
Let's put lots of carbon into the iron,
making it cast iron.
In principle things are clear. Just do the opposite of what is described above. Allow the iron particles to get really hot in the CO rich part of the smelter. Then carbon can penetrate deeply and in quantity. To get a feeling of what the task implies, let's look a bit more closely at how much carbon you actually need, and where it must come from.
|The answer to the last
question is simplicity itself. The only
source of carbon in your smelter is the charcoal. It turns into the carbon
monoxide (CO) that acts as carbon source, indeed, but you first need the
charcoal. Charcoal has a density of 180 kg/m3 - 280
kg/m3; it is very "light". Iron, on the other hand,
weighs in around
7.800 kg/m3 - it is called a heavy metal for good reasons.
Considering that you don't feed only solid charcoal to your smelter but a
charcoal - air mixture, which charcoal accounting for about 50 % of the volume,
the available carbon comes with an effective density of roughly 100 kg/m3.
You can imagine the production of carburized iron by taking a quantity of pure iron and then pile as much charcoal on top as is needed for getting the right carburization level. Dissolve that pile in the iron, and there you are. Here is the picture:
|It sure looks like you need quite a bit. In smelter reality, however, you need far more - multiply by two or three, would be my guess. Why is that? Because you can't put all the carbon from the charcoal into you iron! You need to burn quite a lot to produce the energy needed. And burning turns the carbon of the charcoals into carbon dioxide (CO2). In the reducing layer this CO2 is reacted to the carbon monoxide (CO) that reduces the ore. That produces carbon dioxide once more. Slag production might also eat up some carbon. Whatever happens, a lot of carbon dioxide (and possibly some monoxide) will come out on top of your smelter, and the carbon in these gases cannot carburize your iron.|
|If we now want to make cast iron with 4 wt% carbon in the iron, we encounter a new problem:|
|It is not diffusion limited as the production of wrought iron just discussed above. Why isn't it diffusion limited, too? Because you now run your smelter at very high temperatures. The copper people knew how to do this; it is pretty obvious anyway: Increase the ratio of charcoal to ore and blow more air trough the tuyere. In case of doubt use two tuyeres. What you need to achieve is that the iron formed way up in the stack incorporates enough carbon in the CO-rich reduction zone to lower its melting point to a value were it becomes liquid before it hits the oxidation zone. Then it can trickle down as cast iron and collect as a liquid in the bottom of the smelter, protected by the slag layer that swims on top of it.|
discussed above, your only chance to get
enough carbon into the iron is to use carbon monoxide as source of carbon. From
the picture above it becomes clear that you need to turn a lot of charcoal carbon into carbon monoxide to
have enough. And don't forget, you need carbon monoxide also to reduce the iron
ore. For doing that you need far more carbon dioxide and energy than in the
case of making wrought iron. That's why you need to burn far more charcoal.
Hence the simple recipe for making cast iron once more:
|Isn't that interesting? Putting a lot of carbon into iron is just about as difficult as keeping it out! Maybe making wrought iron isn't that tricky, after all? If you don't know a thing about iron and carbon and just run your smelter on the "lean" side, you will get some carbon into the iron but maybe not all that much? Maybe, but Lee Sauder, based on experiments, disagrees. He rather goes for running your smelter hot and being smart about slag production. Who knows.|
|What we do know is that the early
iron smelters around 1200 BC and some time after that produced all kinds of
iron and steel. Wrought iron, mild steel, hard steel, cast iron, phosphorous
iron, and so on. The bloom from just one run might have contained a whole mix,
and the results from one run to the next must have varied. That is what
tend to find
Forging the stuff must have been frustrating. Sometimes it was easy, sometimes it was difficult and sometimes it couldn't be done at all. That explains up to a point why sometimes jewelry was made from hard steel and a knife blade from wrought iron, and why there seems to be no system in the amount of "carburization" if we look at early iron products. It is one thing to discover the basic technique of smelting iron, and quite another thing to make it a reproducible process that produced high-grade blooms with consistent qualities and carbon content. It also takes some time to establish (and pass on) the art of forging with all its many tricks.
|It is usually assumed that the "West", including the Romans, was not able to produce cas iron in antiquity - in contrast to the "East," i.e. the Chinese. That is not the case. It looks rather that people didn't want to make cast iron. Old cast iron has meanwhile been found in Europe, and there is probably more. One problem is that you only find cast iron or residues of cast iron smelting you look for it (and know how to interpret what you find. I give you two references for that 2), 3) but for the time being leave it at that and now turn to the art of smelting steel.|
|Making iron with carbon contents
between 0.2 % and 0.8 %, say, is now simplicity in itself (haha): Don't do
anything special. Not too cool, not too hot and so on, and you will end up with
a bloom that contains some average carbon
content around, say, 0.4 %. If you look closely you find that the carbon
concentration varies from one spot to the next. It is easy to see why. Every
iron particle, deposited on the existing bloom by some slag droplet, has its
own history and acquired more or less carbon. If the lumps of ore fed into the
smelter had a large distribution of sizes, differences will be large, if they
all had about the same size, their carbon contents will be more similar.
For some hands-on experiecne on this read Adrian Wrona's "hands-on" account. Here it is.
|There might also be differences in the average carbon contents from the bottom part of the bloom to the top part because conditions changed. When you first feed ore into the smelter, you cool it to some extent and it may take some time before a stationary state is reached. When you stop operations, your smelter is still hot and things still happen for a while.|
|With increasing experience you learn
how to make a bloom with some halfway predictable carbon content. Surprises are
likely to to happen whenever one of your parameters changes a bit without you
noticing. The quality of the charcoal from that new supplier is a bit
different, your new tuyere has a slightly smaller inner diameter, your bellows
developed a tiny leak, the gangue coming with the ore changed a bit in its
compositions, you had too much beer while controlling things, ....
Enough "theory". Now let's go out and smelt.
|I have (of course) never heeded my own advice. But others have, in particular Darrell Markewitz, who works in the Lee Sauder tradition. His account in what it takes to do proper smelting is quite "hands-on" and fascinating. Here is his report.|
|1)||Donald B. Wagner: Ancient Carburisation of Iron to Steel: a Comment", Archeomet., 4.1 (1990) p. 111 - 117|
|2)||P. Crew, M. Charlton, P. Dillmann, P. Fluzin, C. Salter and E. Truffaut: "Cast iron from a bloomery furnace", In The Archaeometallurgy of Iron, Eds J Hosek, H Cleere & L Mihok, 2011, 239-262|
|3)||Hubet Presslinger: "Metallographische Beurteilung... (he found cast iron in the Noricum)", Schild von Steier, 20 (2007) pp. 313-315|
© H. Föll (Iron, Steel and Swords script)
