The Luristan Project - Large Pictures of Cut Sword

These very large picture serve as permanent record of the project results. Some experts may recognize features not evident to us.
The first picture shows the positions of the scan once more for convenience

Part of Kiel half; polished and Nital etched.
Strongly contrast enhanced.

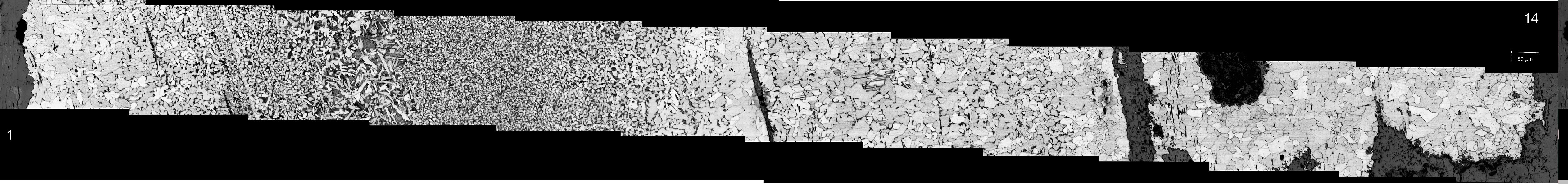

Scan through the backside of the left head (animal part; 1 - 14). Turned 90o for convenience

Luristan mask sword project
Link to text

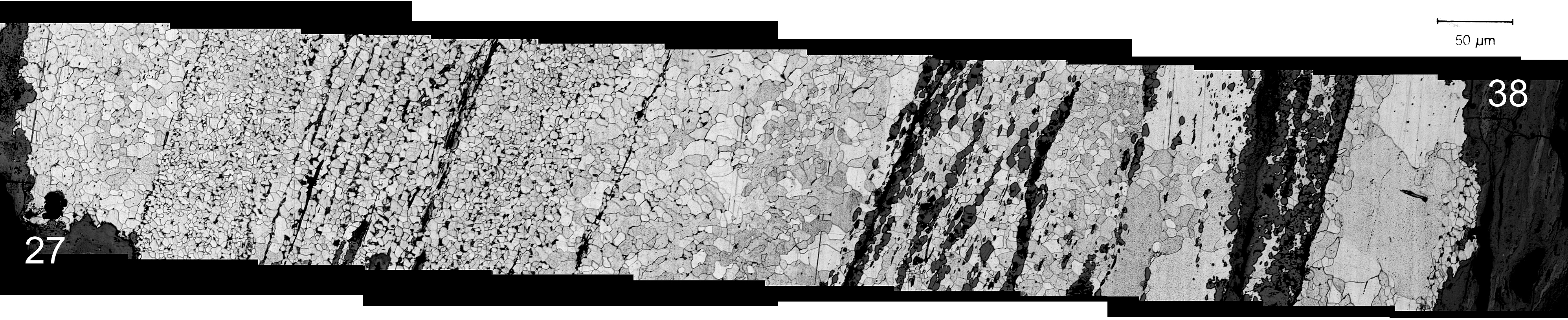

Scan through the backside of the right head (animal part; (15 - 26) and the "bead" region (38 - 27) Turned 90o for convenience

.
Link to the text

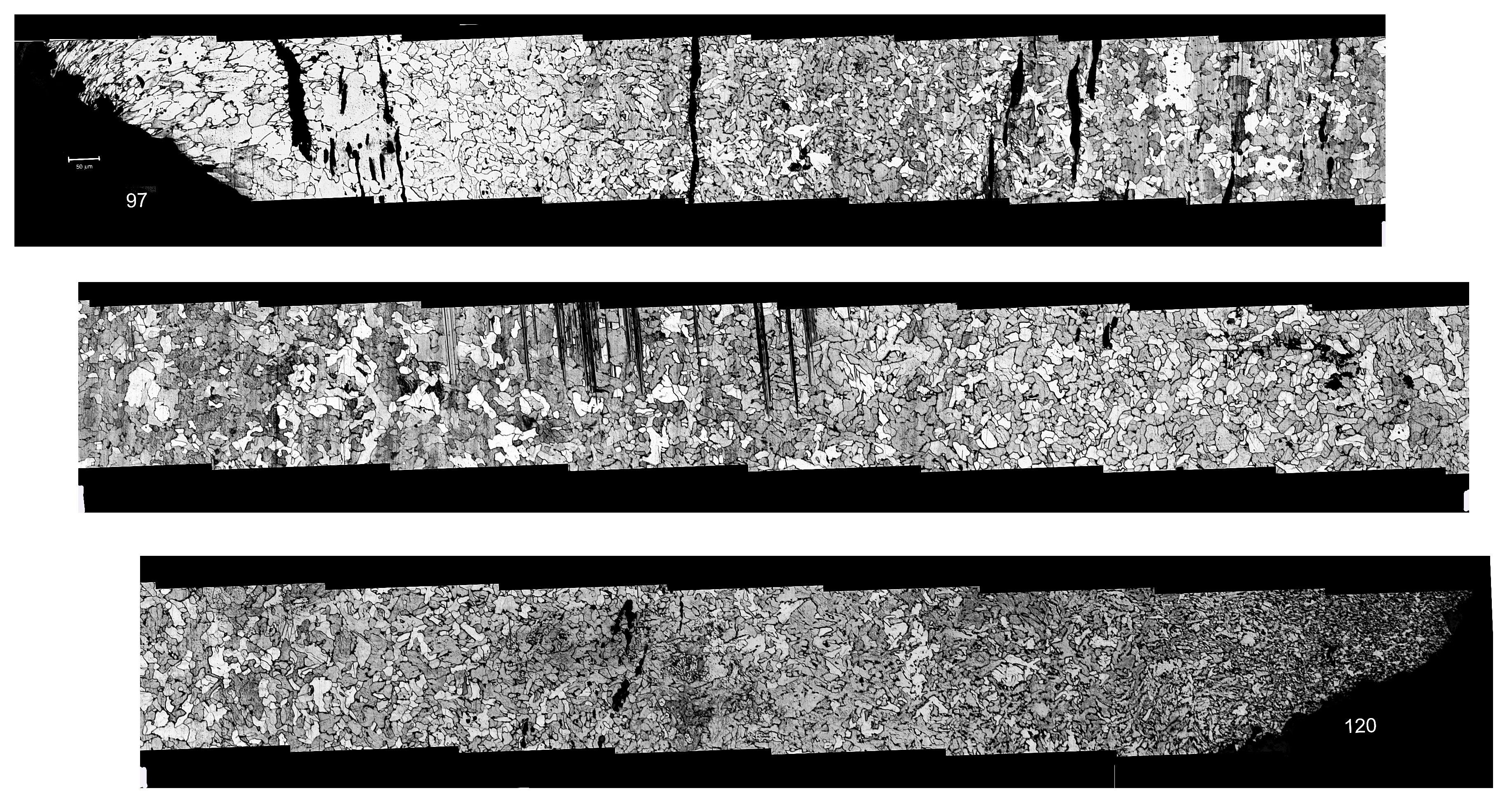

Scan through the hilt at the upper ring position (97 - 120)

Link to text

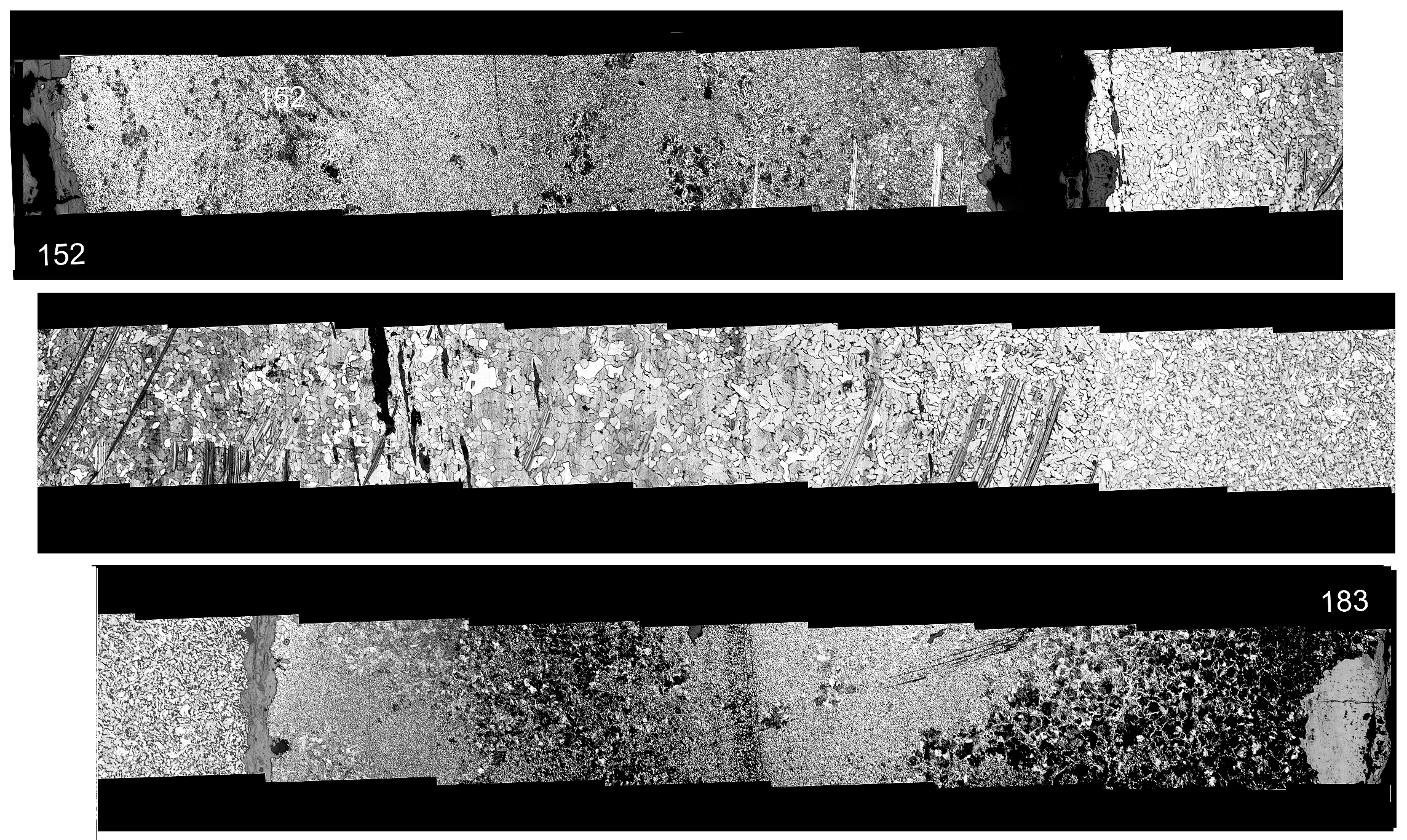

Scan through the hilt at the middle ring position (152 - 183)

Link to text

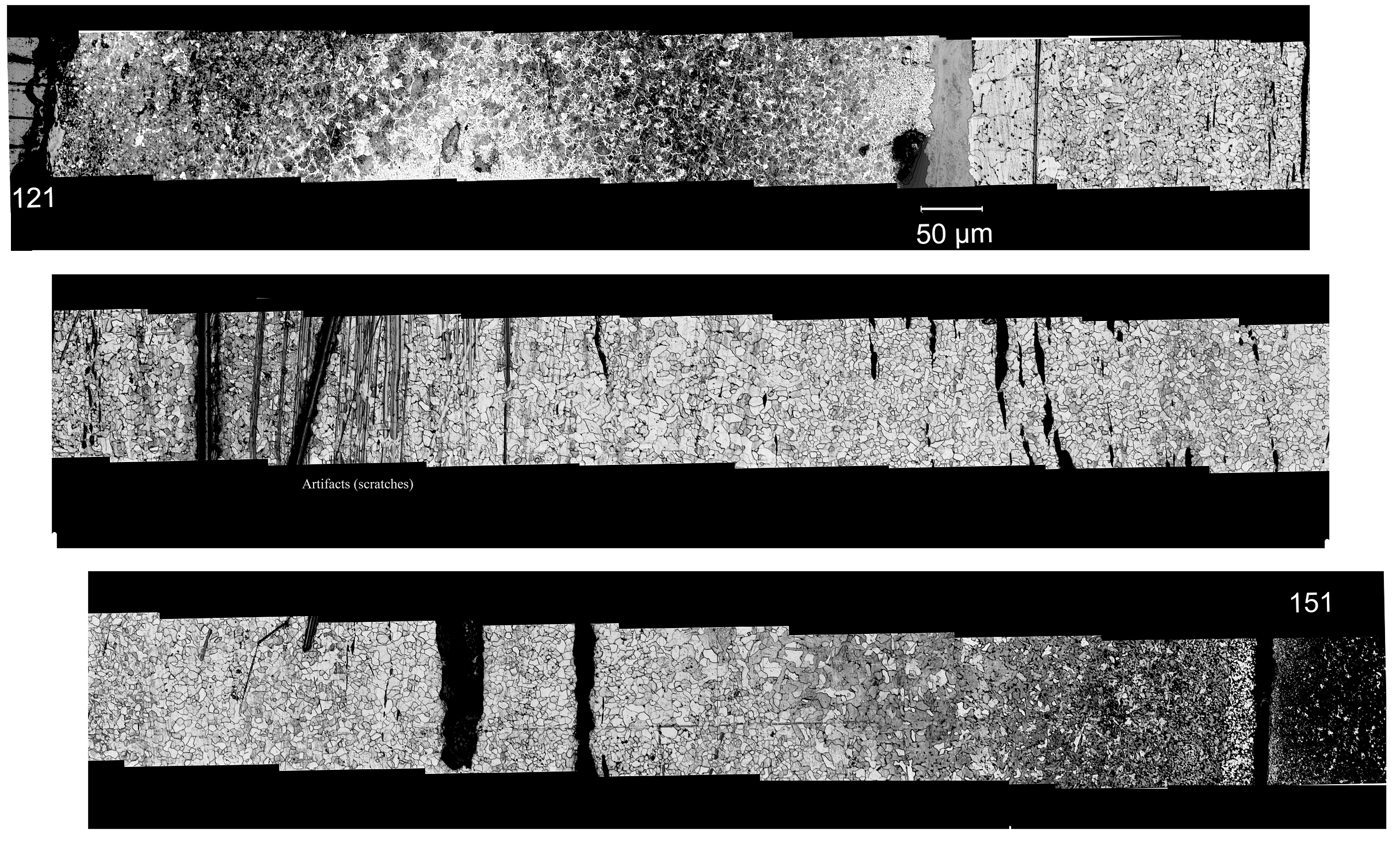

Scan through the hilt at the bottom ring position (121 - 151)

Link to text

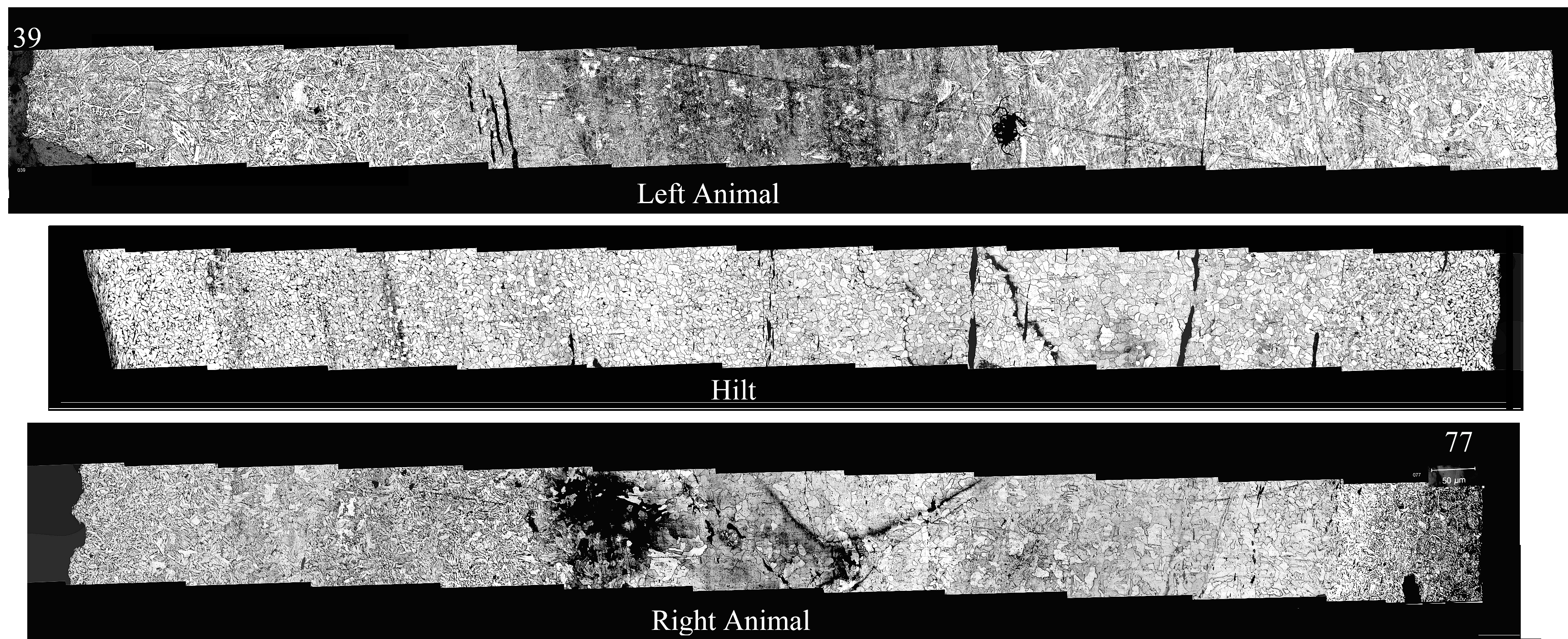

Scan through the animals and the hilt (39 - 77)

Link to text

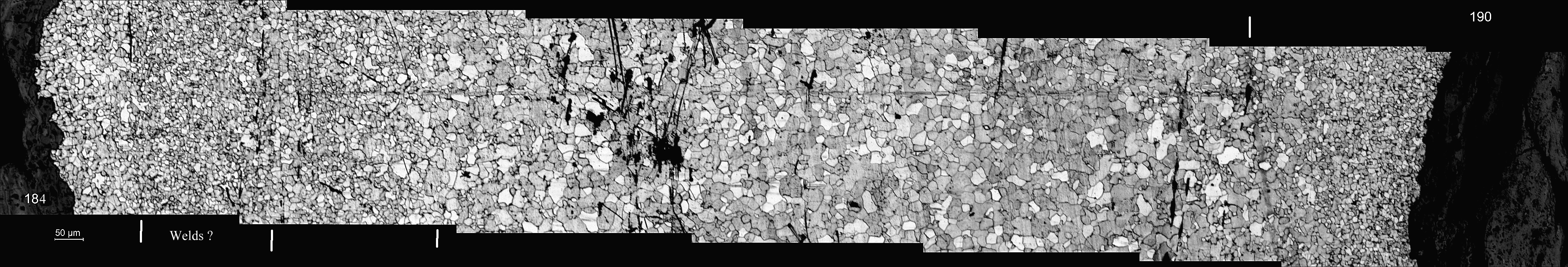

Scan through the blade close to the hilt (upper blade; 184 - 190)

Link to text

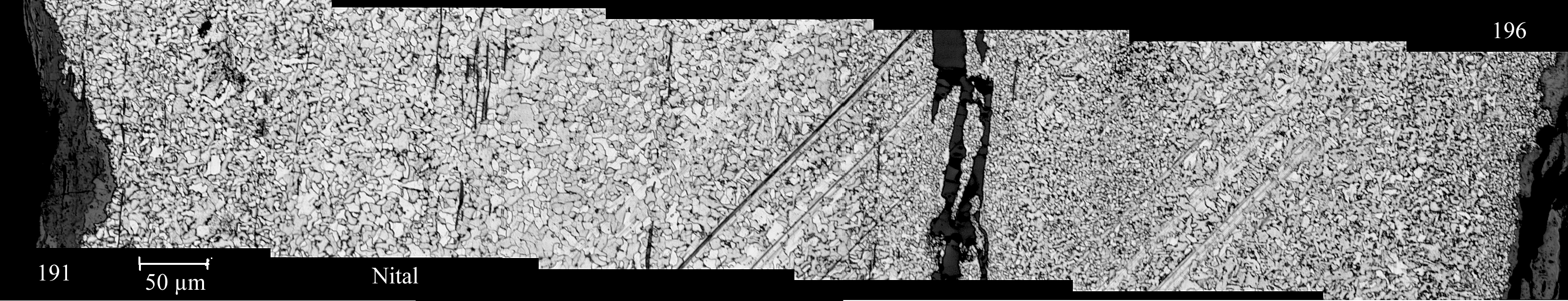

Scan through the blade in the middle (middle blade; Nital 191 - 196; Oberhoffer 275 - 281):


Link to text

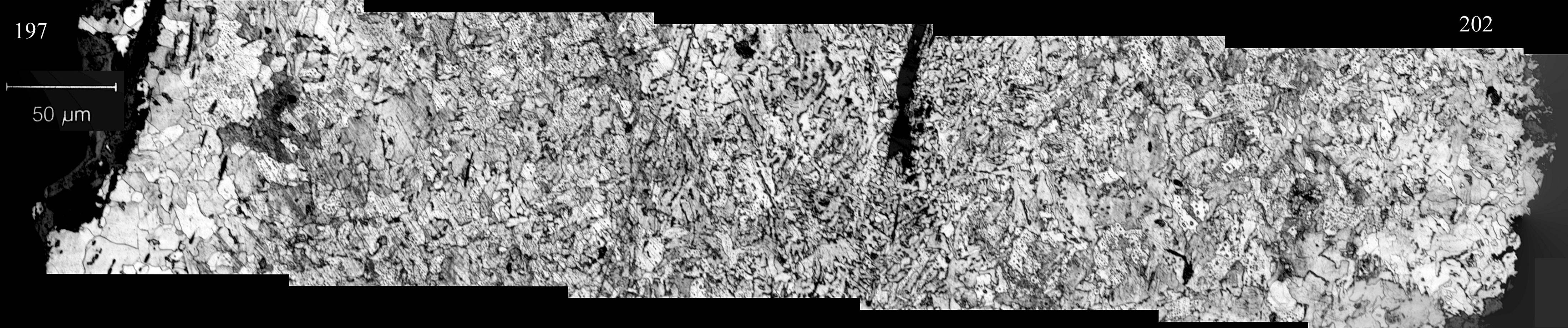

Scan through the bottom end of the blade (197 - 202)
Link to text
