5.1.4 Wavelength Engineering

We will now try to find some answers to our fifth question: How can we change the wavelength of the light produced by radiative recombination?
This question is to be understood in the sense of "changes beyond just choosing from given materials having different band gaps".
The recipe coming to mind is: Mix two similar (direct) compound semiconductors with different bandgaps.
Luckily, most III-V compounds are completely miscible in ternary or even quaternary crystals.
In other words: From the 2 compounds GaAs and AlAs we can make ternary Ga1-xAlxAs for 0 £ x £ 1, from GaAs and InP we can produce quaternary Ga1-xInxAs1-yPy.
This gives a lot of options. What happens upon mixing, which changes of properties are useful, and which are not? Are there guidelines or do we have to try it out?
Generally, all properties of interest as given in a table in subchapter 5.1.1 will change while x and y run through the accessible range, but not necessarily linearly (or even monotonously) with the composition.
Here we focus on just a few of the especially important properties:
  • Bandgap
  • Band type (direct or indirect)
  • Lattice constant
  • Thermal expansion coefficient
The two last properties will be of overriding technical importance as soon as we learn how to make heterostructures, i.e., combinations of two different semiconductors.
There are some standard diagrams showing major properties of the most important combinations.
The first and most important one shows the bandgap vs. the lattice constant plus information about the band type. It is shown below, with the II-VI compounds included for good measure:
Bandgap vs. lattice constant
There is a tremendous amount of information in this diagram (note that "X-gap" and "L-gap" both denote indirect band gaps at the respective positions in the band diagram):
Most III-V compounds radiate at wavelengths above the visible region, i.e., in the infrared. However, adding some Al to GaAs, producing AlxGa1-xAs, will shift the wavelength into the red region of the spectrum – here are our red luminescence diodes and lasers!
Very fortunate: GaAs and AlAs have almost the same lattice constant; we can thus combine any combinations of these materials without encountering mechanical stress.
Very unfortunate: There are no III-V compounds in the diagram that emit blue light – which is a severe problem for many potential applications. While in the past, SiC could be used to some extent, it was only with the recent (early 1990s) advent of GaN that this problem was solved.
SiC and GaN crystals, however, are not of the "zinc-blende" type common to all the III-Vs in the diagram but have a hexagonal unit cell. They therefore do not easily mix with the others! To grow GaN layers (bulk crystals can hardly be produced!), it is therefore favorable to use a hexagonal substrate as, e.g., SiC, Al2O3 (sapphire), or Si(111), plus a thick buffer layer.
If we want to radiate at 1.3 µm or 1.5 µm – infrared wavelengths of prime importance for optical communications – we should work with combinations of GaAs, InAs, and InP.
Most interesting: The II-VI compounds are all direct semiconductors and span a much larger range of wavelengths than the III-V's. The fact that they are not much used for products tells us that there must be big problems in utilizing these compounds for mass products (prominent exception: thin-film PV modules made of CdTe).
Here is another picture of the same thing including more materials:
Band gap vs. lattice constant
In the left part, all hexagonal materials are shown; for them, the value of the in-plane lattice constant (i.e., the one perpendicular to the hexagonal axis) is used.
The group-III nitrides AlN, GaN, and InN span an extremely wide range of band gap energies, thereby providing a plethora of design opportunities for devices. In the first two decades of the 21st century, there were a lot of activities in this field, and the development still goes on.
The success in this field is mainly due to two basic achievements: First, to find out how stable p-type doping can be reached; second, to find out how the materials can be grown with sufficient quality regarding high purity and low defect density, especially dislocation density (that's one of the reasons the thick buffer layer mentioned above is needed for).
The first problem was overcome by Shuji Nakamura, the second one by him and by Isamu Akasaki and Hiroshi Amano. Together, they received the 2014 Nobel prize in physics. The Nobel lecture given by Nakamura ("Background Story of the Invention of Efficient InGaN Blue-Light-Emitting Diodes") provides valuable insight into present-day semiconductor research and device development.
Zinc oxide has already found many different applications, but only very few in the field of electronics. This is mainly hampered by the same difficulty originally also faced for the nitrides: Stable p-type doping is still a problem. Nevertheless, ZnO-related research and development in other fields of materials science is also very interesting; see, e.g., the relevant activities in the group of Prof. Adelung here at the TF.
In addition, among the group-III nitrides there is also BN, showing some similarity to carbon: The most stable form is graphitic boron nitride (i.e., covalently bonded hexagonal layers kept together by van der Waals forces), whereas the cubic modification c-BN (having zinc-blende structure) is metastable, just like diamond. Graphitic BN has a band gap of 5.2 eV, it is mainly used as a lubricant (c-BN: 6.4 eV, abrasive).
Let us now look a bit more closely at some other properties for the technically more relevant systems.

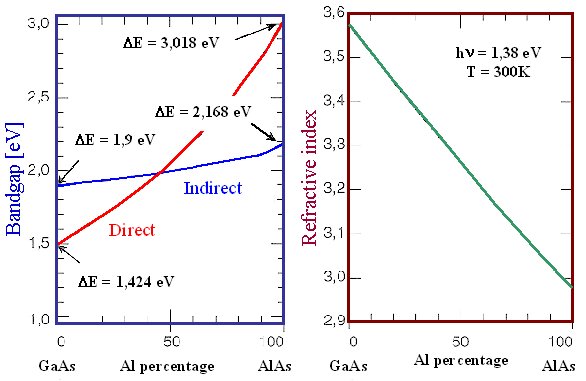

The following diagrams show the direct and indirect bandgap and the refractive index for Ga1-xAlxAs as a function of x.
GaAlAs data

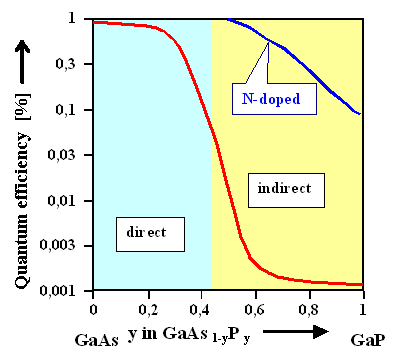

Mixing does not only affect the band gap and the lattice constant, but also the quantum efficiency of light production. The next figure shows the mixture GaAs1-yP y.
The quantum efficiency decreases rapidly as the material approaches the indirect bandgap region.
If an isoelectronic center – N in this case – is added, the GaP side obtains a strong radiative recombination channel via bound excitons and the quantum efficiency is two orders of magnitude larger.
Quantum efficiency as a function of mixing

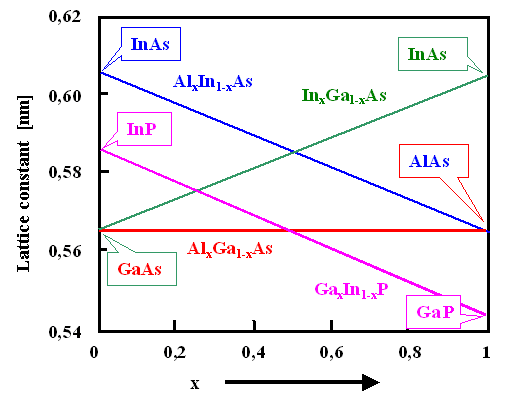

Next the lattice parameters of various mixtures as a function of x are shown.
This is easy to calculate; for complete mixing (no precipitation etc.), the lattice parameter changes linearly with the composition index x between the values for x = 0 and x = 1.
Lattice constant vs. composition
Finally, the technically most important systems are listed together with some key properties:
We see that all kinds of ternary and quaternary compounds are used, and that the external or total efficiency – the relation of light out to total power in – is relatively small in most cases. The external efficiency should not be confused with the quantum efficiency (relation of light produced to total power minus ohmic losses), since some of the light produced may never leave the device – remember the fourth question!
Also remember that the total efficiency of a light bulb is just a few percent. The semiconductor values don't look so bad in this context, and that for GaAs we can get up to 30 % in extreme cases (and beyond!) is encouraging. From that perspective, the blue emission efficiency of the group-III nitrides is beyond expectations. Note that the somewhat exotic exciton process can account for an efficiency of 15 %!!
Material (Dopant) Wavelength
[nm]
Transition External Efficiency
[% of power]
Color
Al0.60Ga0.40N 265 band–band 2 - 10 UV
In0.16Ga0.84N 445 band–band 50 - 70 purple
SiC (Al, N) 480 defect-related (stacking fault?) 0.01 - 0.05 blue
GaP (N) 565 exciton 0.1 - 0.7 green-yellow
GaAs0.15 P 0.85 (N) 590 exciton 0.1 - 0.3 yellow-orange
GaAs0.3 P0.7 (N) 630 exciton 0.4 - 0.6 orange-red
GaAs0.35P0.65 (N) 640 exciton 0.2 - 0.5 red
GaAs0.6P0.4 650 band–band 0.2 - 0.5
Ga0.6Al0.4P (N) 650 band–band 1 - 3
GaP (ZnO) 690 exciton 4 - 15
GaAs 870 band–band 0.1 infrared
GaAs (Zn) 900 band–acceptor 0.5 - 2
GaAs (Si) 940 deep level 12 - 30
In0.73Ga 0.27As0.58P0.42 1310 band–band 1 - 2
In0.58 Ga0.42As0.9P0.1 1550 band–band
