Math for the Movement of Rigid Bodies
Note that it is hard to express all that without equations
 | |
 | |
 | |
Math for the Movement of Rigid Bodies |
||||||
|

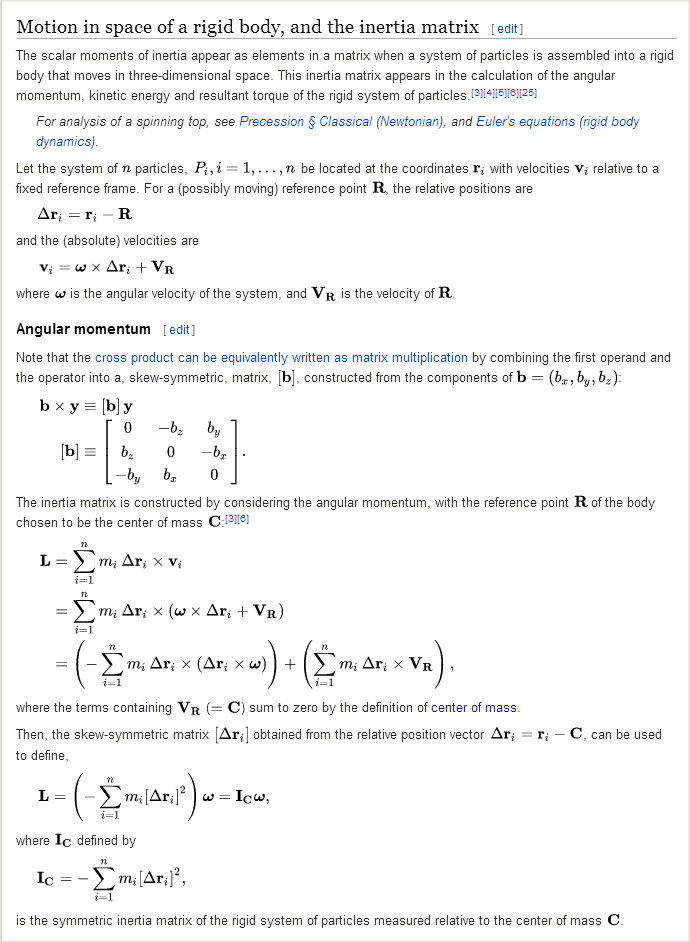

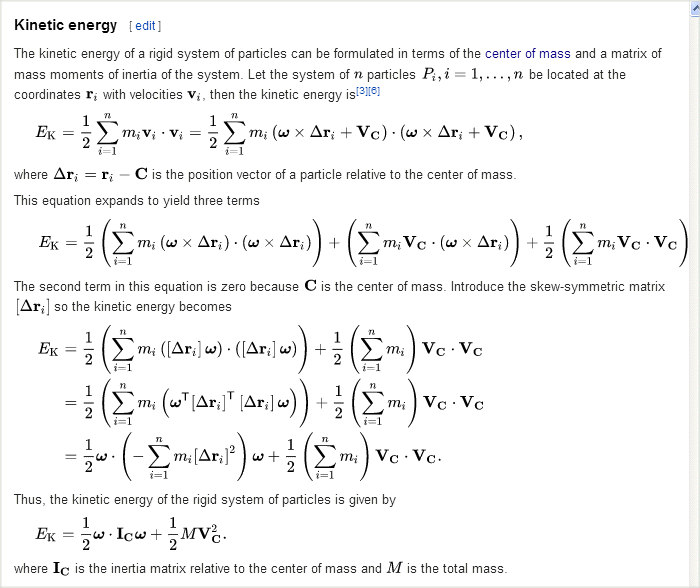

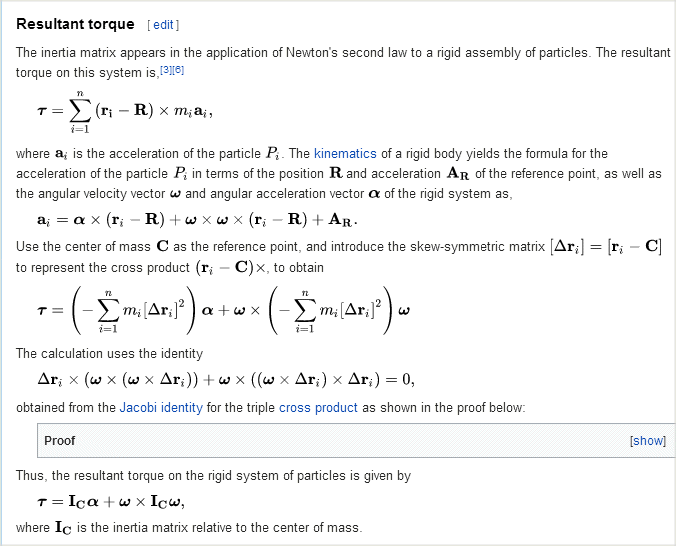

Here is a bit of what it takes to deal with arbitrary movements or translation
plus rotation of a rigid body. The pictures are straight form Wikipedia. Note that it is hard to express all that without equations | |||||
| ||||||
| ||||||
| ||||||
12.3 Dynamic Properties; 12.3.1 Moving a Stick
© H. Föll (Iron, Steel and Swords script)
