Point Defects in Ionic Crystals

Most General (and Unrealistic) Case

It is important to be clear about the possibilities of producing defects in ionic crystals. It is also important to be clear about names:
  • Anions move to a positively charged electrode also called anode, they are therefore negatively charged particles. Examples: The Cl ions in NaCl.
  • Cations move to a negatively charged electrode also called cathode. Example: The Na+ ions in NaCl,
  Now there is some room for confusion: If we take out the negatively charged cation Na+, we have produced a cation vacancy that has a positive effective charge and thus behaves like an anion!
Here is all that can happen in a simple NaCl crystal:
All possible defects in ionic crystals
"General" Disorder
  Even for the most simple ionic crystals of the type A+B like LiCl or NaCl, we can, in principle, produce arbitrary concentrations of two kinds of vacancies and two kinds of interstitials as shown on the left.
However, as we already learned in dealing with Schottky defects, global charge neutrality must be maintained. Arbitrary concentrations are thus not really allowed, we must demand that the the sum of the positively charged defects equals the sum of the negatively charged defects. In other words: we have to obey the charge conservation law.
  If we also keep the number of atoms constant, we must add an A or B atom to the surface of the crystal for every pure vacancy we produce. In other (fancy) words, we have to obey the mass conservation law.
  The picture on the left would not have needed the AB molecule, because we have two interstitials, too. But since it is supposed to illustrate the general case, with arbitrary numbers of defects, it needs to include A and B atoms on the surface.
As always, you must bear in mind that pictures as shown here are schematic - in more realistic pictures the ions would touch! However, in more realistic pictures it also would be harder to show what is intended.
This will always be true if the anion is larger as the cation which is the case for many, but not all ionic crystals. We thus can safely assume that the concentration of one kind of interstitial, here the anion interstitial, is always far smaller than that of the other three defect kinds and we will simply neglect it from now on.
However, for crystals with a big and heavy cation (e.g. Ca+) and a light anion (e.g. F), the cation might just be as big as the anion, and occur as interstitial (e.g. in the so-called "Anti-Frenkel defects").

Most General (and Realistic) Case

If we forget about the anion interstitial, we are left with three possible point defects.

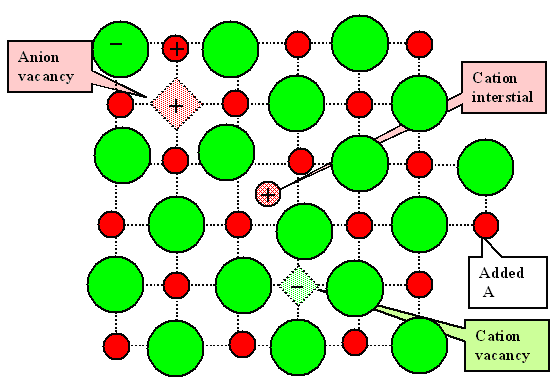

Possible defects in ionic crystals
Realistic Disorder
  The three now possible defect types are shown on the left. This is the general case of the mixed defects treated in the backbone
   Note that charge equilibrium demands that you always have more cation vacancies than anion vacancies or cation interstitials:
cV(C)  =  cV(A)  +  ci(C)
  This necessitates that some AB molecules must be added to the surface of the crystal if we keep the atom count in order, too (same concentration as the anion vacancy, to be precise).
The realistic mixed case thus contains Schottky and Frenkel defects in parallel.
Note that the picture above does not show the equilibrium case, because we do not have charge neutrality - for that it would need another cation vacancy.
Every cation vacancy finds an anion vacancy as a fictive partner, forming a formal Schottky defect, and every cation interstitial finds a cation vacancy, too, for a formal Frenkel pair, and the concentration of the anion vacancies is just so that it meets both demands for partners.
We thus can identify cV(A) with the concentration of Schottky defects and ci(C) with the concentration of Frenkel defects.

Special Cases: Schottky and Frenkel Disorder

Schottky and Frenkel disorder may now simply be seen as extreme cases of the mixed disorder.

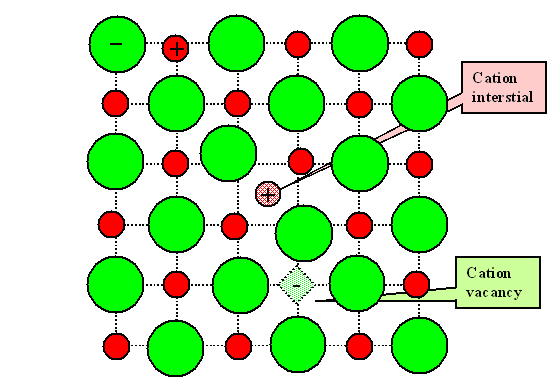

Frenkel defects in ionic crystals
Frenkel disorder
Frenkel disorder is predominant if the formation enthalpy of Frenkel pairs is smaller than that of Schottky pairs, i.e.
We then only - or at least predominantly - have Frenkel pairs, i.e. equal numbers of cation vacancies and cation interstitials. We do not have an AB molecule for Frenkel disorder.

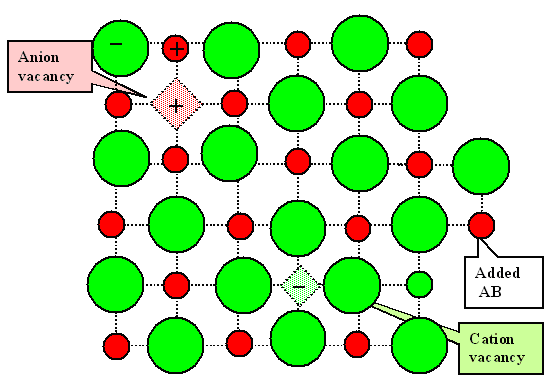

Schottky defects in ionic crystals
Schottky disorder
Schottky disorder is predominant if the formation enthalpy of Schottky pairs is smaller than that of Frenkel pairs, i.e.
    We only - or at least predominantly - have vacancy pairs, i.e. equal numbers of cation vacancies and anion vacancies. And - in contrast to Frenkel disorder - we always need to form a lattice molecule, our AB molecule, to preserve atom numbers.
Just how much smaller the relevant formation enthalpy has to be for factual predominance of one defect type remains to be seen - in an exercise.
