| | A first few curves showing the relation of the minority carrier life
time and point defects More to come in due time |
||
|

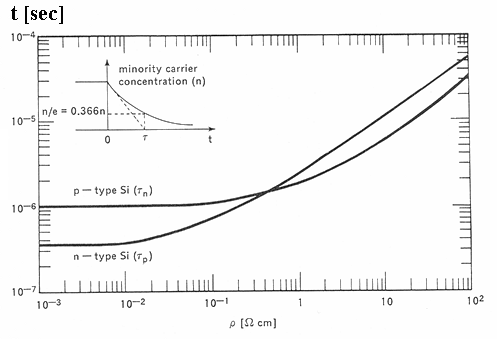

Shown below is the life time as a function of the doping (or
resistivity) for otherwise perfect crystal. This is the ultimate life time achievable - it
can only get worse if crystal defects are added. |
||
| |||

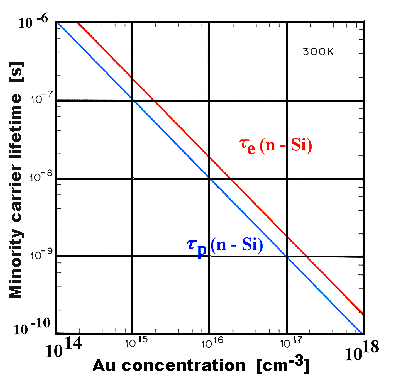

| Gold - an interstitial impurity atom in Si - is known to be a potent "life time killer" like many heavy metals. This is the reason why jewelry, watches, make-up (often containing heavy metals) are absolutely forbidden in clean rooms. | ||
| The curve below shows that minute amounts are sufficient to degrade the life time far below the level dictated by doping alone. | ||
| |||
