Copper Microstructure Tells It All

Was that copper artifact made from native copper or from smelted copper? Was it hammered into shape or cast? How can I tell?
Look at the microstructure - after you got an idea about the basic composition. Polish it, use a proper defect etch, and look at it under a microscope. What you will see is:
  • A nice dendritic structure for cast copper that cooled down "naturally". A few precipitates (e.g. Cu2O) may be visible if your copper isn't 100 % pure.
  • A distorted dendritic structure with lots of twins and "dark" areas full of dislocations if your cast copper was cold-hammered.
As cast As cast and cold hammered
Microstructure of copper - schematic, after
Annealed / Recrystallized Annelead and cold hammered
Copper structures schematic
Source: general knowledge and the paper: Tobias L. Kienlin: "Aspects of the Development of Casting and Forging Techniques from the Copper Age to the Early Bronze Age of Eastern Central Europe and the Carpathian Basin" Montanhistorische Zeitschrift Der ANSCHNITT. Beiheft 24; Veröffentlichungen aus dem Deutschen Bergbau-Museum Bochum, Nr. 180
  • Nice big grains with relatively straight boundaries, a few twins and precipitates on boundaries for fully annealed and thus recrystallized copper.
  • Wobbly grains with many twins and "dark" areas full of dislocations for annealed and then cold-deformed copper.
Refer to David Scott's book for details about what to expect and how to recognize what you see. Or just look at this paper.
Here are some examples:
Microstructure of cast copper

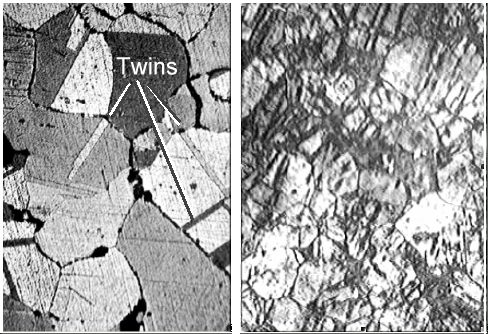

Microstructure annealed and cold-worked copper
Annealed Cold hammered
Observed copper structures
Source: L. Ercanli: "The examination fo metal working technology in Kültepe", PhD thesis, Middle East Techn. University
It's not that easy, of course, and their are questions that cannot be answered by just looking at the microstructure. The figure above makes clear, however, that there are significant differences between different "kinds" of copper, and with experience and some specimens with known history for comparison, a scientist can tell.

With frame With frame as PDF

go to Books and Other Major Sources

go to Critical Museum Guide: Metropolitan Museum, NYC

go to 10.1.2 Copper

go to Constitutional Supercooling and Interface Stability

go to Yumuktepe

© H. Föll (Iron, Steel and Swords script)
