Impurity Diffusion in Si

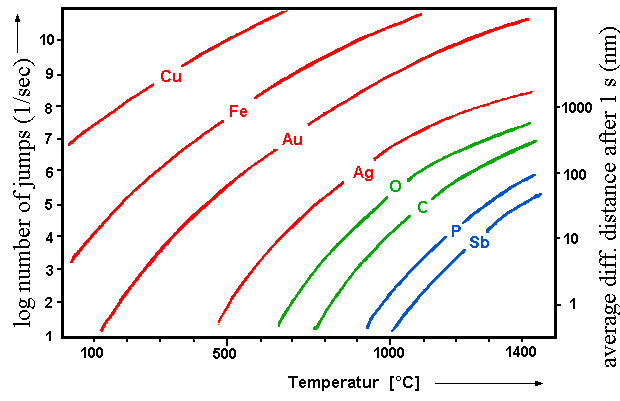

Shown is a somewhat unusual representation of impurity diffusion that gives a direct feeling for the number of jumps and distances covered as a function of the temperature. It is evident that waiting for long, but still reasonable times does not help anymore if the temperature is too low.
