HRTEM of Gateoxide and ONO

Here are two HRTEM pictures of "gate" dielectrics form around 1990 from the Siemens Laboratories in Munich. It is actually not the gate dielectric in these pictures, but the dielectric in the capacitor of a DRAM memory cell. The properties of this oxide are just as critical as under the gate of a transistor.

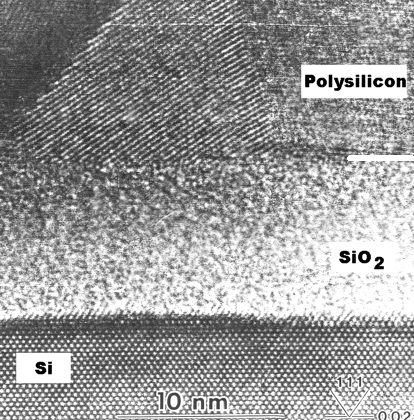

The one on the left show the "conventional" single layer of SiO2 that was grown by thermal oxidation.

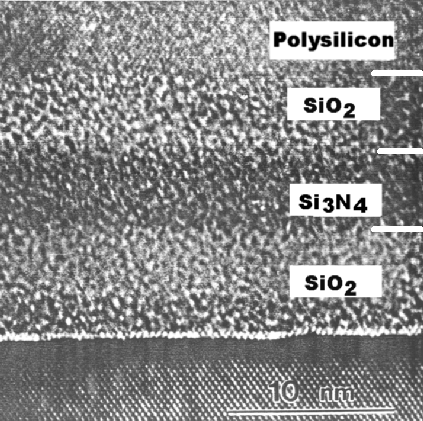

The picture on the right shows "ONO". Here the first oxide is grown by thermal oxidation of the substrate wafer, the nitride is deposited by CVD, and the top oxide layer is produced by oxidizing the nitride.
High resolution TEM of SiO2 Gateoxid High resolution TEM of ONO
