Complete Wafer Process

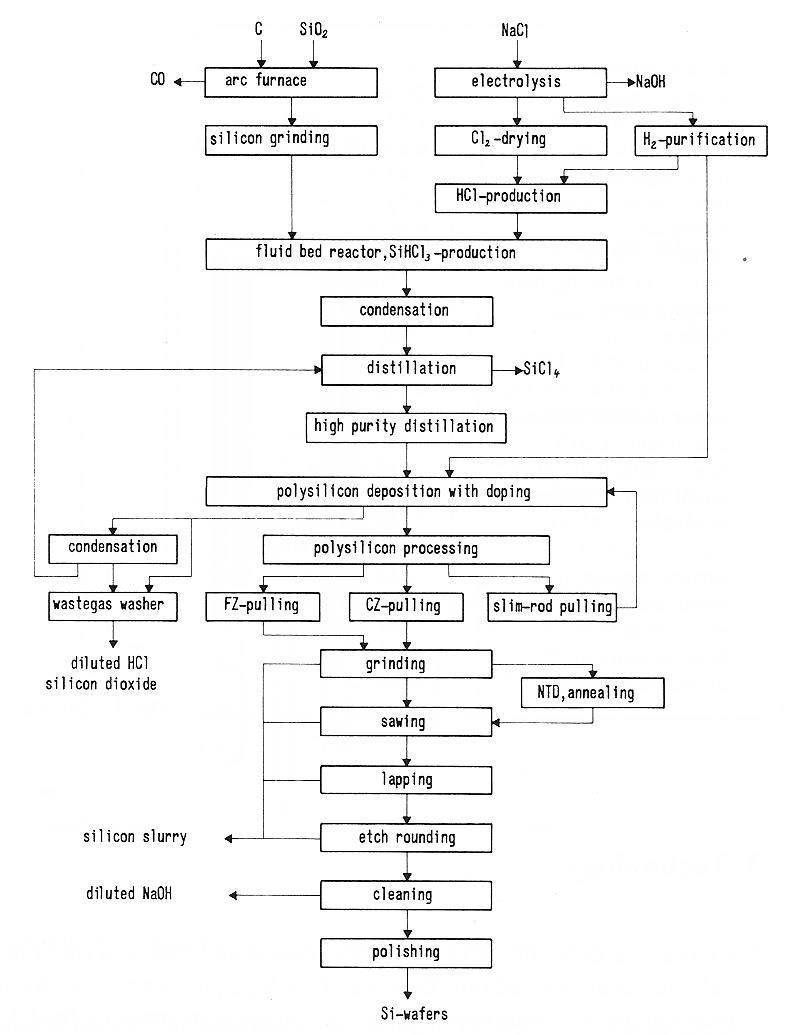

First a schematic process flow graph is given for everything - from sand to wafer.
It includes side processes not covered in the backbone modules which, however, are self explanatory.

Si process flow

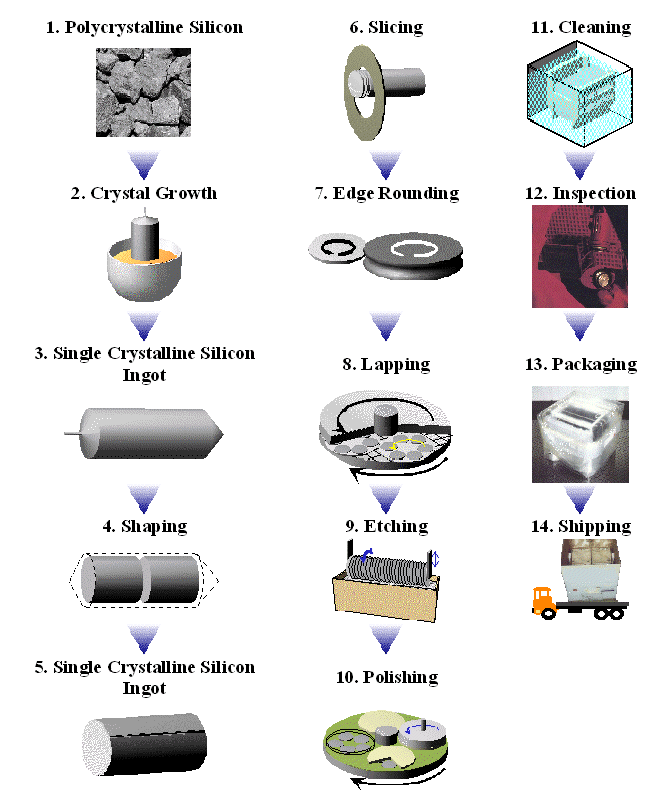

Next, we have a pictorial representation of just crystal growth and wafer production. Again, it contains some self-explanatory processes not introduced before.

From Poly-Si to the wafer
