Emergence of a New Chip

After much designing, simulation, process trials and test chips comes the moment when the first product chip containing the new generation will enter the line and becomes processed. Processing may take several month because many processes do not work too well or are done in prototype machinery. Here is a real example from the development of a 16 Mbit DRAM at Siemens.
If the batch of wafers does not die a sudden death at some shaky process (or because somebody simply drops them), "First Silicon" will eventually emerge. This is a big moment in the life of the team - now we will see if several 100 man years and many million $$ were well spent.
The test crew starts to measure the function of the memory with the chips still on the wafer. The results are plotted in a matrix mimicking the matrix of memory cells on the chip. The color given to a pixel encodes the quality of the individual memory cell. Yellow means fully functional, all other colors, especially red, mean trouble.

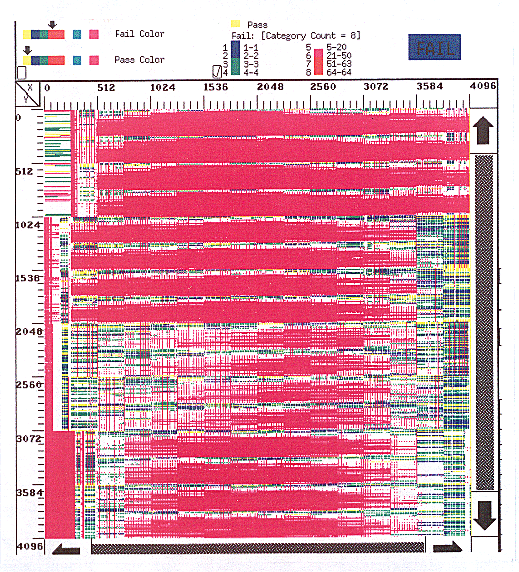

Below is a plot for the best chip from the "first Silicon". The insert on the right shows that single pixels are resolved in principle. How was the feeling with a result like that?
Yield map first silicon
Detailed yield map
The feeling was : Get out the champagne! There are fully functional memory cells on this chip! Not too many - but who cares. This was good! More often than not, nothing whatsoever works on first Silicon. A few hundred cells that work are enough to measure all critical parameters of the circuits and to get the desperately needed data for optimizing design and processes.

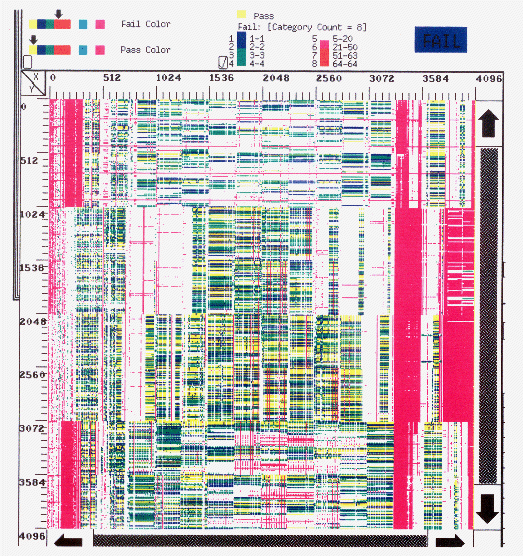

Next comes second Silicon. Those wafers probably were processed to some degree when first Silicon came out, so only back end processes can now be optimized. But there is improvement: A little bit more yellow, but far less deep red!
The structure in these plots - pixels of the same color arranged in lines - simply reflects the fact that a number of memory cells share the same bit- or word line. If this line is interrupted, all its memory cells fail.
Second silicon
Here we have the first redesign - all the things learned from first Silicon are now incorporated into the chip.

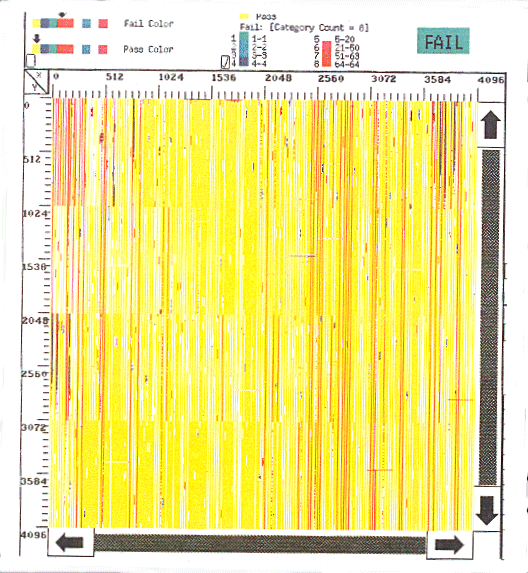

And now the yellow color dominates. While this looks pretty good, we are still a million or so cells short of total success.
Getting better

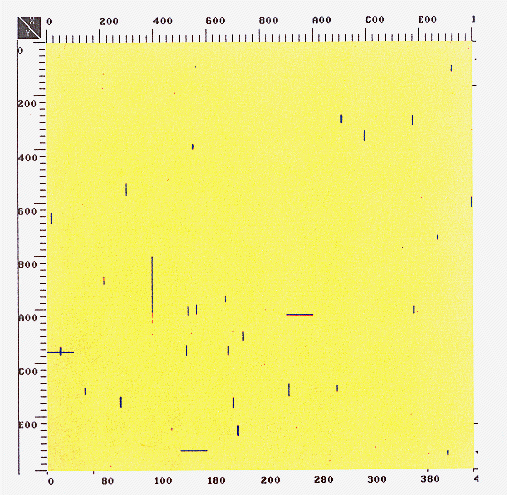

Now the process stabilizes and a new game starts: Get rid of the few but noticeable problems in the memory matrix. This is tough!
Still improving

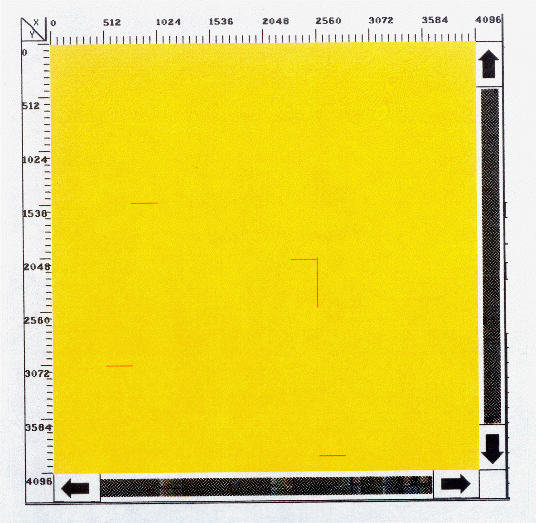

Now we won: Only a few strongly correlated failures - no single bit problems. This can be solved - with luck - by activating some redundant memory cells that will take over the function of the failed cells
This is it - almost

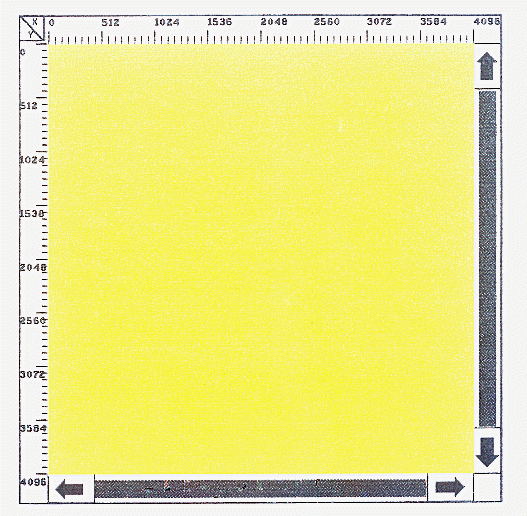

Triumph!! Using the built in redundancy, a fully functional memory matrix was obtained for the first time - in the third full process cycle, a very good score.
First fully functional chip
Exactly two chips out of some thousand candidates are fully functional. The project goals have been met.
All that remains to be done now is to crank up the yield to, say, 15 % functioning chips per wafer so that production can start.
That was a joke: Now the really hard work starts. It will take considerably more time and money to "just improve the yield" than it took to get to this point in the chip development.
