Cleanroom Garments

Below some pictures from inside a cleanroom. We also see some pieces of equipment.

Cleanromm garments
General view of work in a clean room

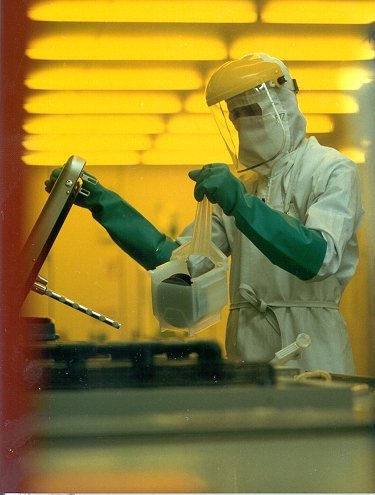

Clreamroom garments with safety features
Inserting wafers into a "cleaner"; a kind of washing machine
for wafers employing extremely aggressive chemicals.
Special protection (heavy gloves and a face shield) are worn.

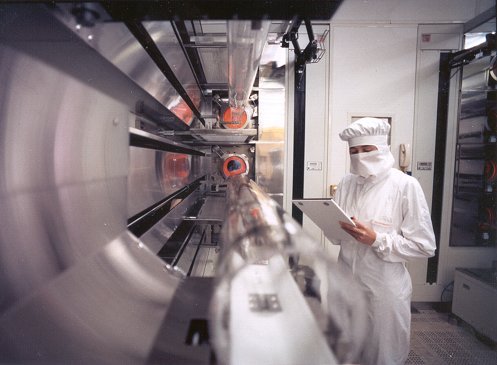

Cleanroom garments and furnace
Looking along the mechanism for moving wafers into a furnace.
The orange glow from the furnace tubes is visible.
