Stacking Faults and Micro Twins

Shown is the same area of a Si sample imaged with two different diffraction vectors of the {220} type. The defects are the result of an epitaxial process used for making integrated circuits which was followed by diffusion /oxidation step.
Whereas some defects completely vanish with one diffraction vector and show strong contrast with the other one, the medium sized defects stay in contrast (the small dislocation ending at an etch pit, too).

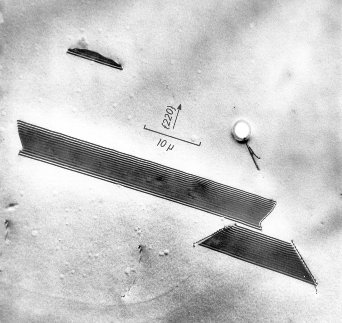

Stacking fault/Microtwin 1

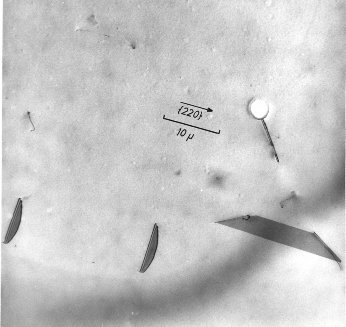

Stacking fault/Microtwin 2
Further analysis, using more special diffraction conditions, show the that medium sized defect is a micro twin. The difference between micro twins and stacking faults is shown in the graphic below:

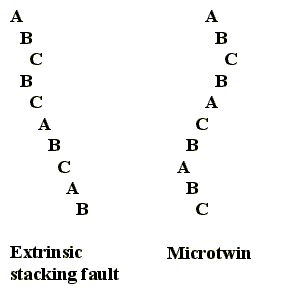

Stacking sequence microtwin
An interesting side observation was that the microtwins "killed" the devices, while the stacking faults did not. In other words, devices containing stacking faults still worked, while the ones with a microtwin inside were electrically faulty.
This is a correlation that cannot be obtained by defect etching or any method without "high resolution", because a microtwin and a stacking faults would be indistinguishable.
