Movement of a Mixed Dislocations

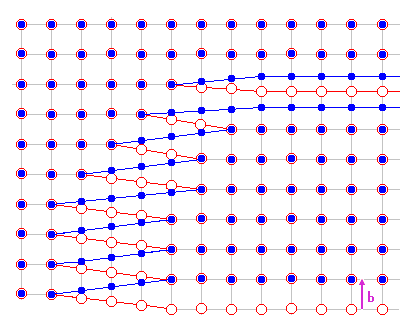

Here is again the dislocation from chapter 5.1.2
The picture is animated; the dislocation can be seen as it moves out of the crystal, thus reversing the cut-and-displace procedure that created it.
